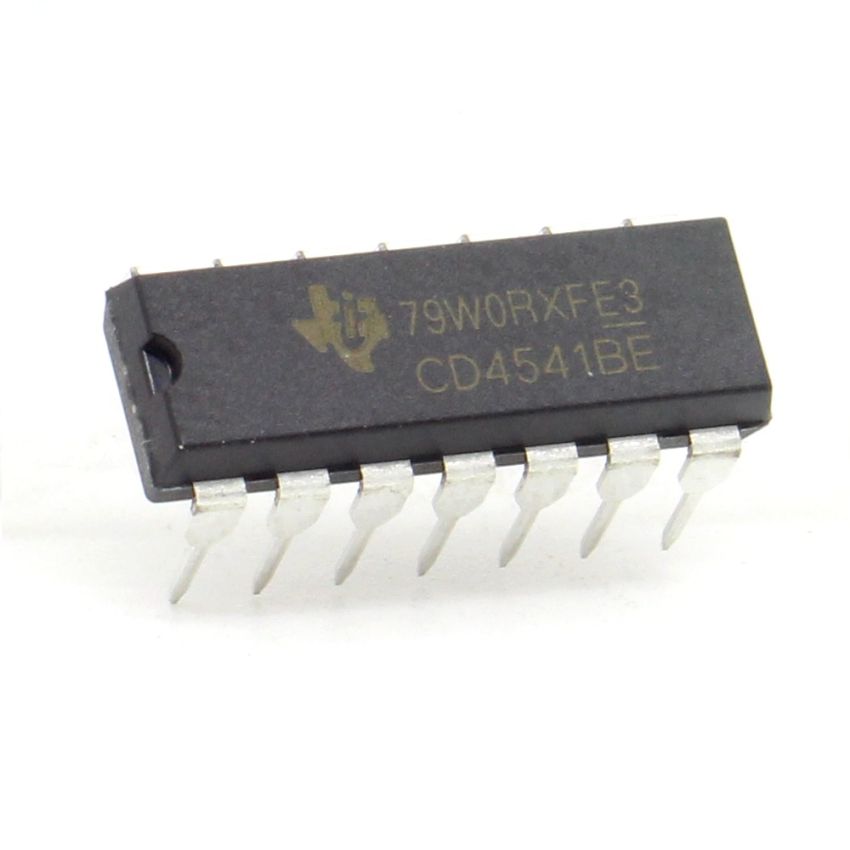

CD4541BE,CMOS Programmable Timer,DIP-14

The CD4541BE is a versatile CMOS programmable timer IC designed for precision timing and frequency division applications. Encased in a DIP-14 package, it integrates a 16-stage binary counter, an oscillator, and output control logic for robust performance in various applications.

Operating across a wide frequency range from DC to 100 kHz, the CD4541BE is suitable for both single-transition timing and frequency division. Its flexible design includes auto-reset and manual-reset capabilities, making it an excellent choice for industrial automation, digital systems, and timing circuits.

• Programmable Timer: Configurable as a single-transition timer or a frequency divider.
• Versatile Operating Modes: Supports 2N frequency division or single-transition timing.
• Wide Frequency Range: Operates from DC to 100 kHz.
• Auto-Reset and Manual-Reset Options: Provides flexibility in initialization and operation.
• Low Power Consumption: Optimized CMOS technology for energy efficiency.
• Compact DIP-14 Package: Ideal for through-hole PCB designs.
