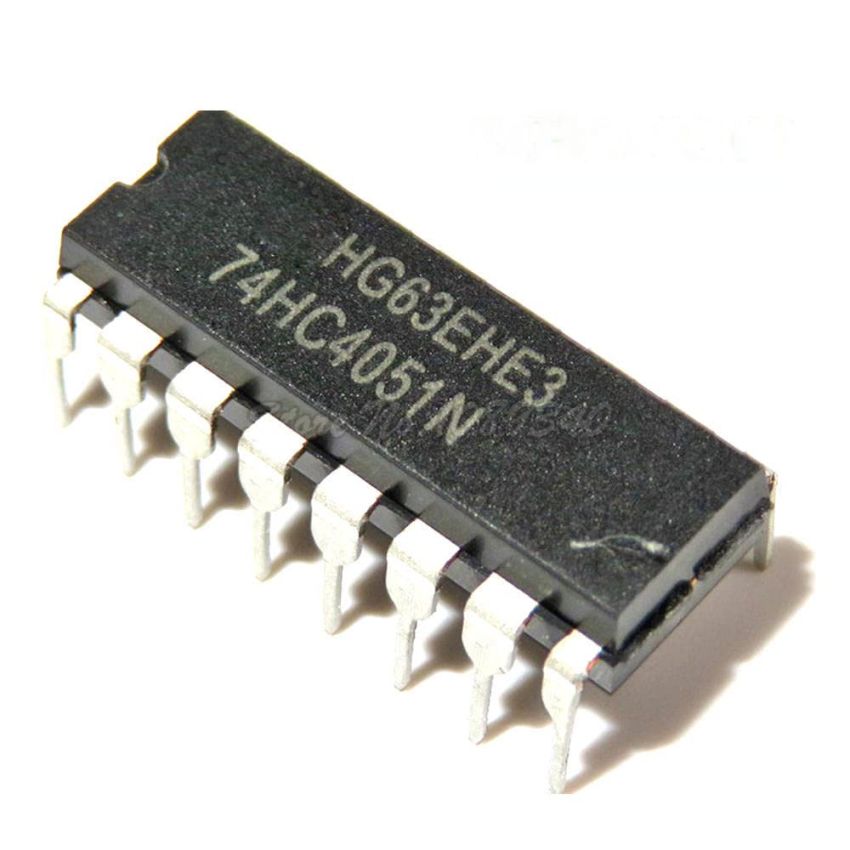

74HC4051N, 8-Channel Analog Multiplexer/Demultiplexer,DIP-16

The 74HC4051N is a high-speed 8-channel analog multiplexer/demultiplexer designed for signal selection and routing in analog and digital circuits. It provides a flexible solution for switching between multiple input signals while maintaining low ON resistance and high-speed operation.

With a wide supply voltage range of 2V to 10V, the 74HC4051N supports both low-power and high-performance applications. The device features break-before-make switching, ensuring no short-circuit conditions occur during transitions. Its low ON resistance (70Ohm at 6V supply) minimizes signal attenuation, making it ideal for analog signal processing, sensor interfacing, and communication systems.

The 74HC4051N is housed in a PDIP-16 package, making it easy to integrate into traditional PCB designs. This device is commonly used in data acquisition systems, instrumentation, and audio applications, where signal multiplexing is essential.

• 8-Channel Analog Multiplexer/Demultiplexer: Selects one of eight inputs to be connected to a common output.
• Wide Voltage Range: Operates between 2V and 10V, ensuring compatibility with various logic families.
• Low ON Resistance: Offers 70Ohm typical at 6V supply, ensuring minimal signal loss.
• Break-Before-Make Switching: Prevents short circuits when switching between channels.
• Fast Switching Time: Provides a 20ns typical propagation delay, allowing high-speed operations.
• Industry-Standard PDIP-16 Package: Suitable for through-hole PCB integration in analog and digital applications.
