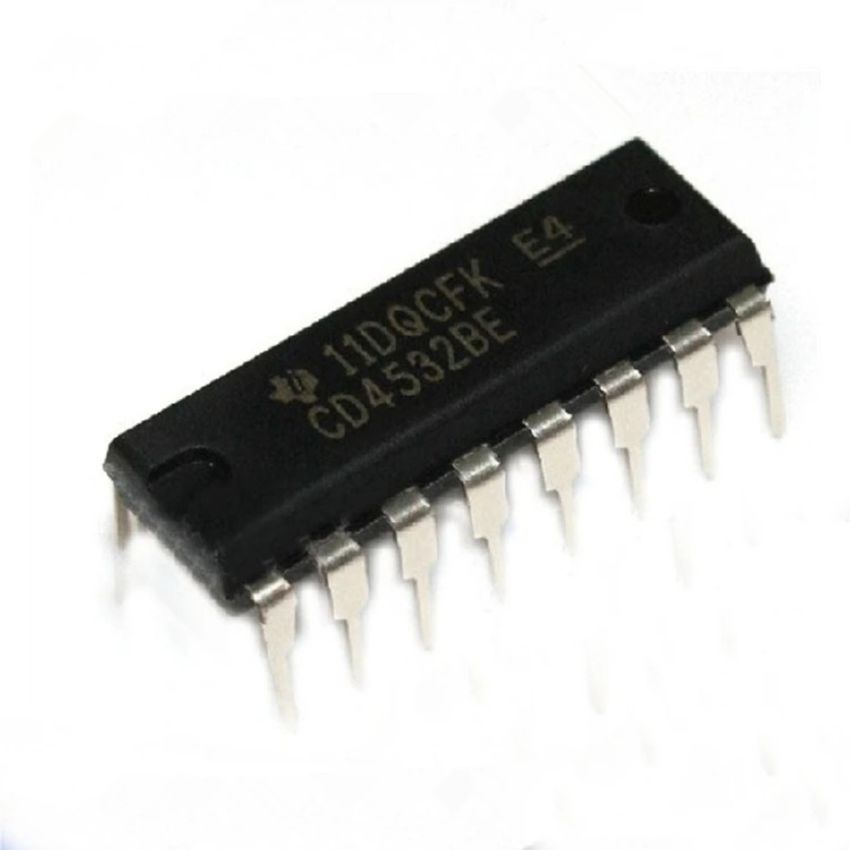

CD4532BE, 8-Input Priority Encoder, DIP-16

The CD4532BE is an 8-to-3 priority encoder, designed for use in data processing, logic control, and code conversion applications. It accepts eight input lines and encodes the highest-priority active input into a three-bit binary output, simplifying signal transmission and logic processing. Operating within a voltage range of 3V to 15V, the CD4532BE is highly adaptable across different logic families. The device includes cascading features, allowing expansion beyond eight inputs when required. With its DIP-16 package, the CD4532BE is ideal for applications such as microcontroller interfacing, interrupt controllers, and logic priority selection circuits.

• 8-to-3 Priority Encoder – Encodes eight data inputs into a three-bit binary output based on priority.
• Wide Voltage Range – Operates efficiently between 3V and 15V, making it compatible with various logic systems​
• Cascadable Design – Features enable input (EI) and enable output (EO) for expanding beyond eight inputs.
• High-Speed Operation – Ensures reliable and fast binary encoding for digital systems.
• Low Power Consumption – CMOS technology provides minimal power usage for energy-efficient designs.
• DIP-16 Package for Easy Integration – Standard dual in-line package for simple PCB mounting and prototyping.
