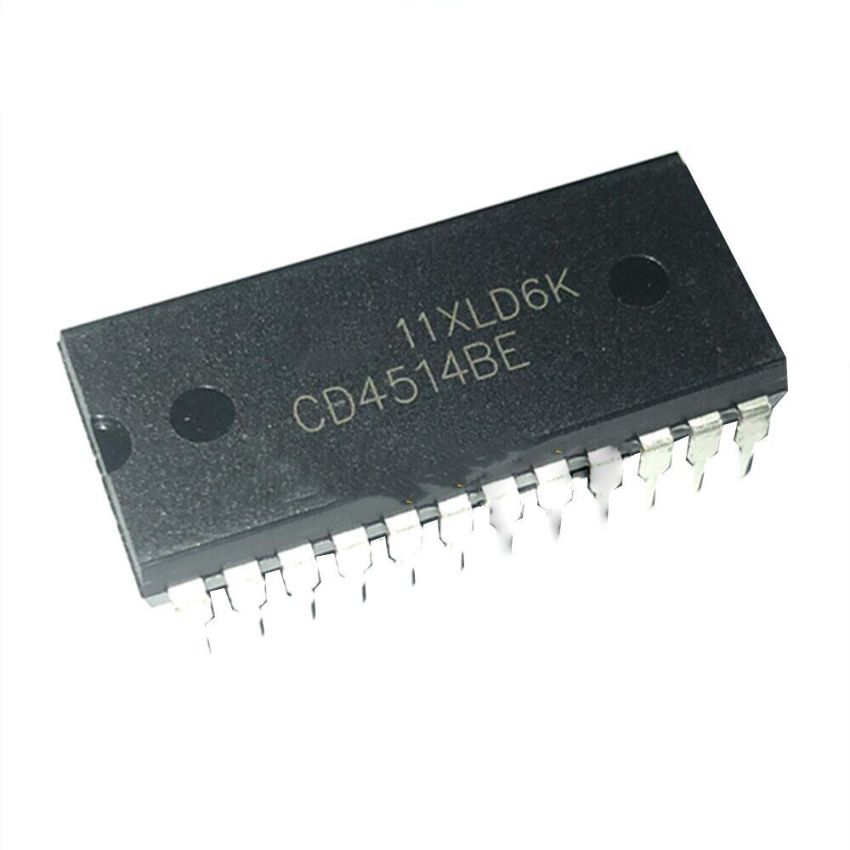

CD4514BE,4-to-16 Line Decoder,Demultiplexer with Latches,DIP-24

The CD4514BE is a high-performance 4-to-16 line decoder/demultiplexer IC with integrated latches for stable output operation. It converts 4 binary-coded inputs into 16 mutually exclusive active high outputs, making it ideal for use in memory addressing, data routing, and display systems.

Encased in a compact DIP-24 package, the CD4514BE operates over a wide voltage range from 3V to 18V and supports TTL-compatible logic levels. With low power consumption and high output drive capabilities, it is a versatile solution for industrial, consumer, and educational applications.

• 4-to-16 Line Decoding: Converts 4 binary inputs into 16 mutually exclusive outputs.
• Integrated Latch Functionality: Provides stable outputs for sequential data.
• Wide Voltage Range: Operates from 3V to 18V, compatible with CMOS and TTL logic levels.
• High Output Drive: Supports up to 10 loads with active high outputs.
• Compact DIP-24 Package: Ideal for through-hole designs in prototyping and production.
• Low Power Consumption: Optimized for energy-efficient digital systems.
