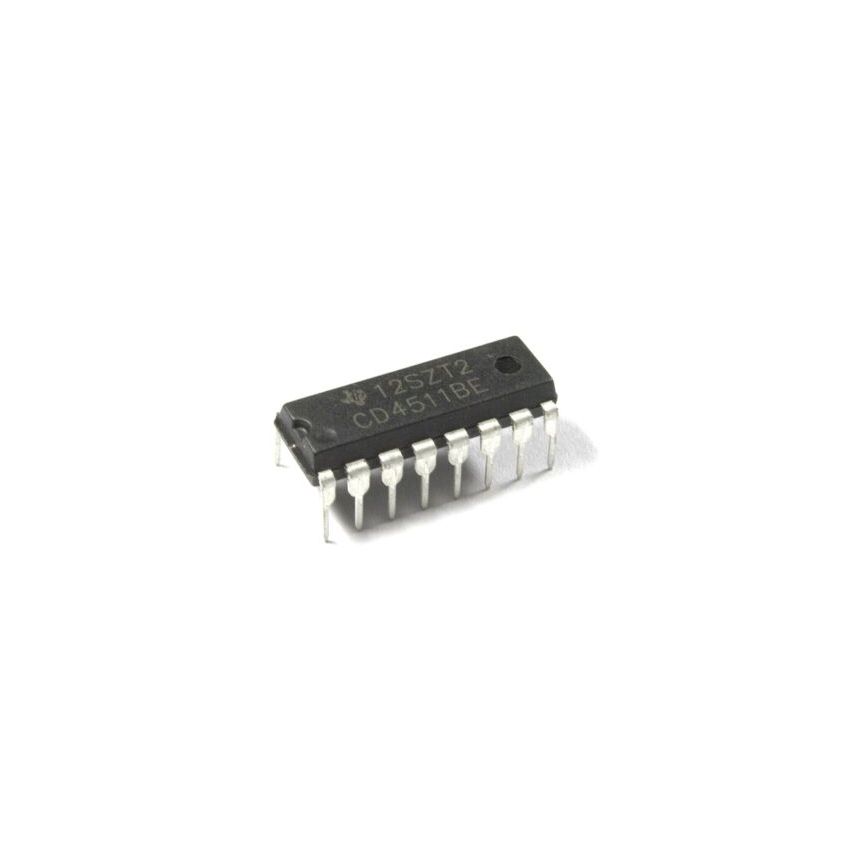

CD4511BE,BCD to 7-Segment Latch Decoder Driver,DIP-16

The CD4511BE is a high-performance BCD to 7-segment latch/decoder/driver IC designed for controlling 7-segment LED displays with minimal external components. Built with CMOS logic, it ensures low power consumption, stable performance, and compatibility with a wide range of digital logic circuits.

The built-in latch function enables the IC to store input data, eliminating the need for continuous signal updating. The high output drive capability makes it ideal for common-cathode LED displays used in numerical readouts, timers, and counters.

Designed to operate within a supply voltage range of 3V to 18V, the CD4511BE is highly versatile for use in microcontroller-based projects, LED display circuits, industrial control panels, and digital counters. Its DIP-16 package ensures easy through-hole PCB mounting, making it an excellent choice for both prototyping and production designs.

• BCD to 7-Segment Decoder: Converts binary-coded decimal (BCD) inputs into seven-segment display outputs.
• Integrated Latch Functionality: Ensures stable display operation without flickering.
• Active High Outputs: Drives common cathode 7-segment displays directly.
• Wide Voltage Range: Operates efficiently from 3V to 15V, compatible with CMOS logic.
• Compact DIP-16 Package: Through-hole design for prototyping and easy integration.
• Low Power Consumption: Designed for energy-efficient operation in display systems.
