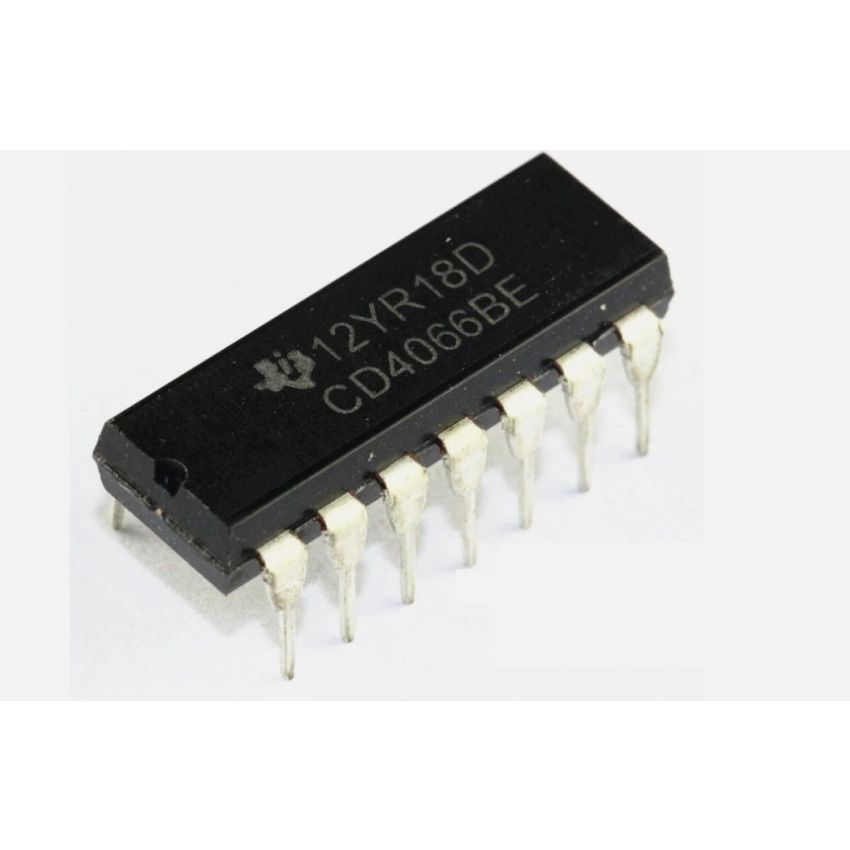

CD4066BE,CMOS Quad Bilateral Switch,PDIP-14

The CD4066BE-DIP is a high-performance CMOS quad bilateral switch designed for versatile signal transmission and multiplexing. With independent control for each switch, it provides seamless handling of analog and digital signals. This device offers a low on-state resistance, ensuring minimal signal distortion and loss. It is ideal for signal gating, modulation, and A/D or D/A conversion applications. The high impedance of the control inputs reduces the risk of signal interference, making it a reliable choice for sensitive electronic designs.

Its wide supply voltage range (5V to 15V) and low power consumption make it suitable for battery-operated devices, communication systems, and industrial control circuits. The DIP-14 package offers compatibility with breadboards and easy soldering for prototyping needs.

• Quad Bilateral Switch Design: Features four independent switches capable of handling both analog and digital signals.
• Wide Supply Voltage Range: Operates efficiently from 5V to 15V, accommodating various circuit requirements.
• Low On-State Resistance: Ensures minimal signal loss with an on-state resistance of 125Ohm (typical at 15V operation).
• High Signal Linearity: Provides less than 0.5% signal distortion, ideal for precision signal switching.
• High-Impedance Control Inputs: Isolated control circuitry ensures minimal interference with signal paths.
• DIP-14 Package: Compact through-hole package for easy prototyping and integration.
