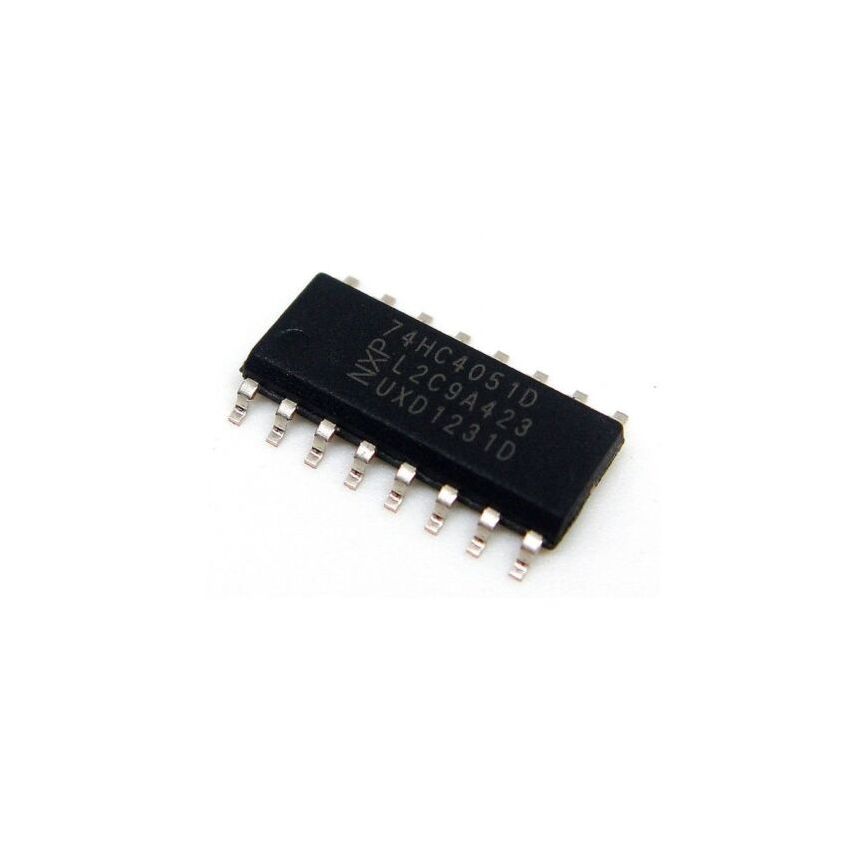

74HC4051D - 8-Channel Analog Multiplexer/Demultiplexer - SOIC-16 Package

The 74HC4051D is a high-speed CMOS 8-channel analog multiplexer/demultiplexer fabricated with silicon gate CMOS technology. This device achieves high-speed operation similar to LSTTL while maintaining low power consumption characteristics of CMOS technology. The 74HC4051D is an 8-channel multiplexer that allows digital signals from a microcontroller or microprocessor to control the connection of one of eight channels to a single output terminal.

It supports both high-speed signal switching and low ON-resistance, ensuring signal integrity even in sensitive applications. The device operates with a wide supply voltage range and can handle analog and digital signal switching.

This component is ideal for use in data acquisition systems, communication systems, and a wide variety of industrial applications. It also features excellent ESD protection and low-power dissipation for increased reliability and energy efficiency.

Key Features :

• High-Speed Operation: Provides fast and efficient multiplexing/demultiplexing for analog and digital signals, with minimal delay and low ON-resistance (50Ohm typical).
• Wide Operating Temperature: Suitable for a broad temperature range of -40C to +125C, ensuring reliability in harsh environments.
• Low Power Dissipation: With a maximum supply current of 4.0 µA, the device consumes minimal power, making it suitable for low-power applications.
• Low ON-Resistance: Ensures minimal signal distortion and high signal integrity with an ON-resistance of 50Ohm at Vcc = 9V.
• Multi-Channel Multiplexing: 8-channel input configuration allows multiple analog signals to be connected to a single output.
• High Degree of Linearity: THD of 0.02% at Vcc = Vee = 9V, making it ideal for precise signal applications.
