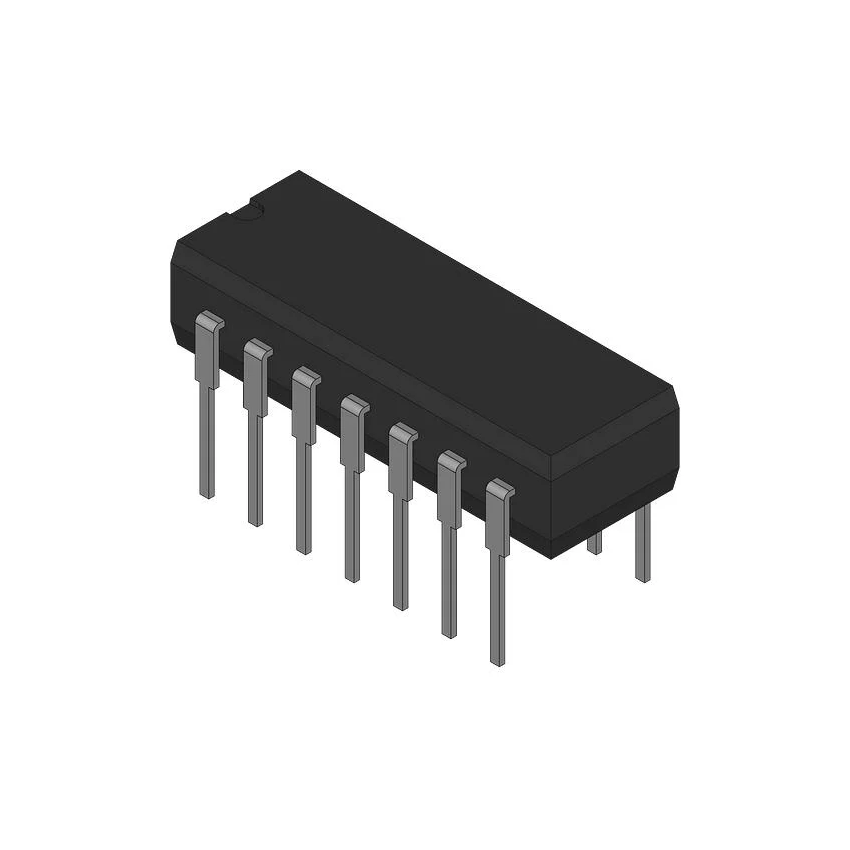

CD4013UBE D Flip-Flop IC Dual D-Type Edge Triggered 3V to 15V DIP14 CMOS Logic

The CD4013UBE is a dual D-type flip-flop IC designed for use in general-purpose sequential logic applications. Each flip-flop features independent data (D), set (S), reset (R), and clock (C) inputs, and complementary Q/Q̅ outputs. It is ideal for data storage, frequency division, shift registers, and control circuits.

Key Features:

• Dual D-type flip-flop with independent set, reset, and clock
• Operates from 3V to 15V supply range
• Positive-edge triggering with low power consumption
• Up to 8 MHz toggle rate at 10V
• DIP-14 through-hole package for easy prototyping
• High noise immunity and TTL-compatible inputs

Additional Specifications:

• Package Type: DIP-14
• Type: Dual D-Type Flip-Flop
• Timing Mode: Positive Edge Triggered
• Supply Voltage: 15V
• Count Rate: 8 MHz
