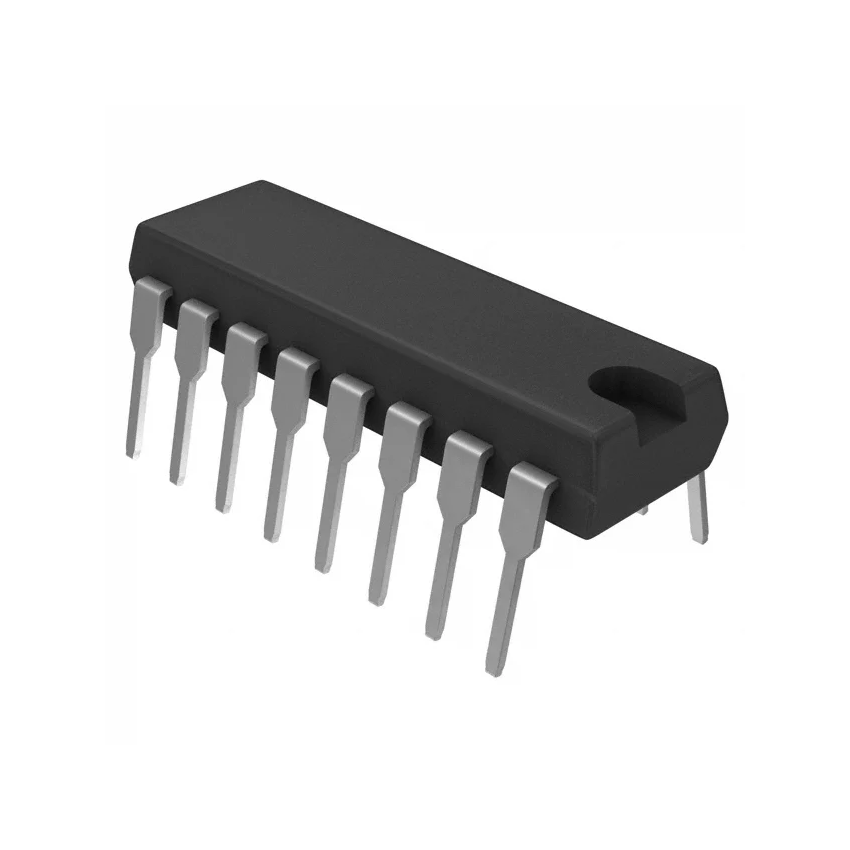

CD4017BE Decade Counter IC 10-Stage 16Pin DIP CMOS Positive Edge Triggered

The CD4017BE is a CMOS Decade Counter/Divider IC featuring 10 fully decoded outputs, triggered by positive clock edges. Commonly used in timing applications, frequency division, and digital sequencing, the device advances the active output on every clock pulse and resets after 10 counts.

Key Features:

• 10-stage Johnson decade counter with 10 decoded outputs
• Fully static operation with master reset and clock inhibit
• Operates from 3V to 15V supply voltage
• High noise immunity and low power consumption
• Positive-edge triggering with carry-out function
• DIP-16 through-hole package

Additional Specifications:

• Package Type: DIP-16
• Type: Decade Counter
• Timing Mode: Positive Edge Triggered
• Supply Voltage: 15V
• Count Rate: 5 MHz
