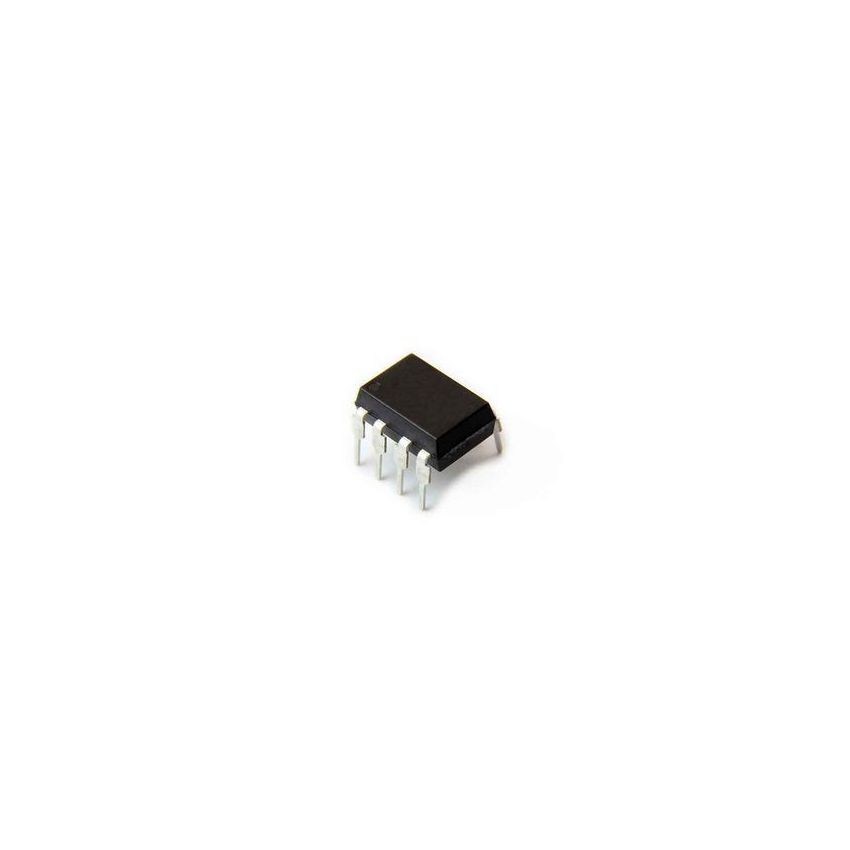

BR24C16 EEPROM IC 16Kb I2C Interface DIP8 Low Voltage 400kHz Serial Memory

The BR24C16 is a 16Kb (2048 x 8-bit) serial EEPROM IC that communicates via a standard I²C interface. It provides reliable and low-power non-volatile memory, ideal for data and configuration storage in embedded systems, consumer electronics, and industrial devices.

Key Features:

• 16Kb (2KB) EEPROM with I²C (2-wire) interface
• Fast I²C operation up to 400 kHz
• 1,000,000 write/erase cycles and 100-year data retention
• Byte and page write capability (16-byte page)
• Operating voltage range: 1.8V to 5.5V
• DIP-8 through-hole package

Additional Specifications:

• Memory Type: EEPROM
• Interface Type: I²C
• Supply Voltage: 5.5V
• Memory Size: 16Kb
