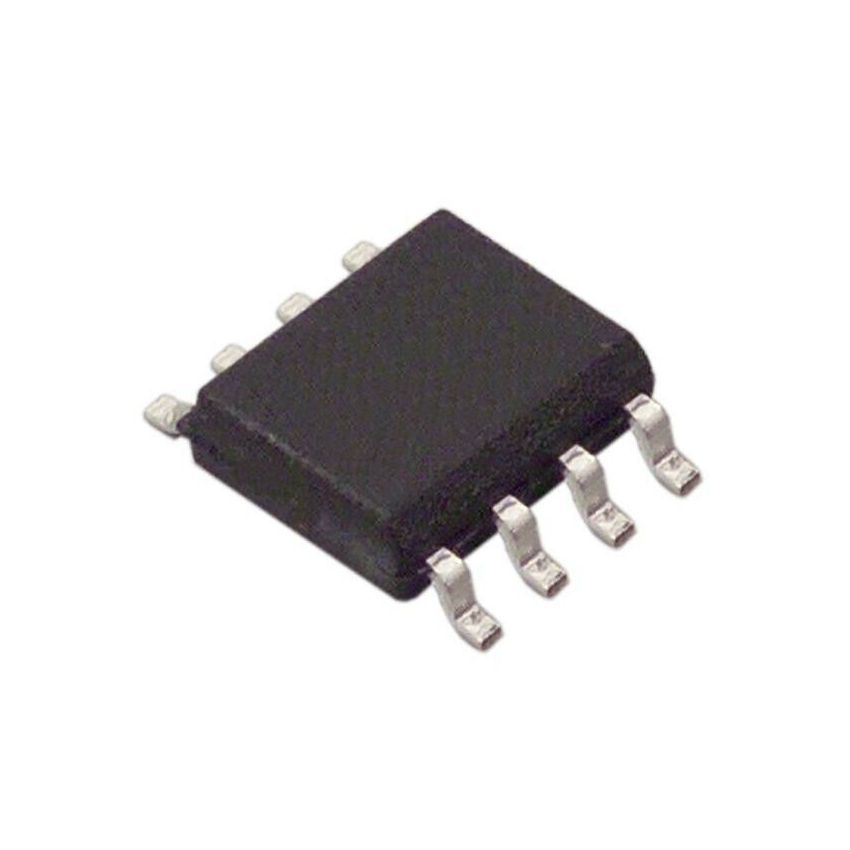

AT24C512, 512Kb EEPROM, I²C Serial Interface,SOIC-8

The AT24C512 is a 512Kb (65,536 x 8-bit) Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) designed for secure and low-power data storage. Utilizing the I2C Two-Wire Serial Interface, it allows seamless integration with microcontroller-based systems for efficient communication and data handling.

Operating within a 2.7V to 5.5V voltage range, the AT24C512 is optimized for low-power consumption, making it ideal for battery-powered devices and industrial applications. The device supports 128-byte page write functionality, enabling faster data programming and storage efficiency. With a self-timed write cycle and hardware-based write protection (WP pin), it ensures safe and reliable operations.

Built for high endurance, the AT24C512 guarantees 100,000 write cycles per byte and offers 40-year data retention, ensuring dependable performance in embedded systems, consumer electronics, and automotive applications. Its compact SOIC-8 package simplifies integration into space-constrained designs.

• 512Kb EEPROM Storage: Organized as 65,536 x 8-bit, ideal for non-volatile data retention.
• I2C Two-Wire Serial Interface: Provides fast, bidirectional communication for embedded applications.
• Wide Voltage Range: Operates efficiently between 2.7V to 5.5V, supporting low-power and high-performance systems.
• 128-Byte Page Write Mode: Allows efficient and structured data handling with partial page writes.
• Write Protection: Equipped with a write protect pin (WP) for safeguarding data from accidental overwrites.
• High Reliability: Supports 100,000 write cycles per byte and ensures 40 years of data retention.
