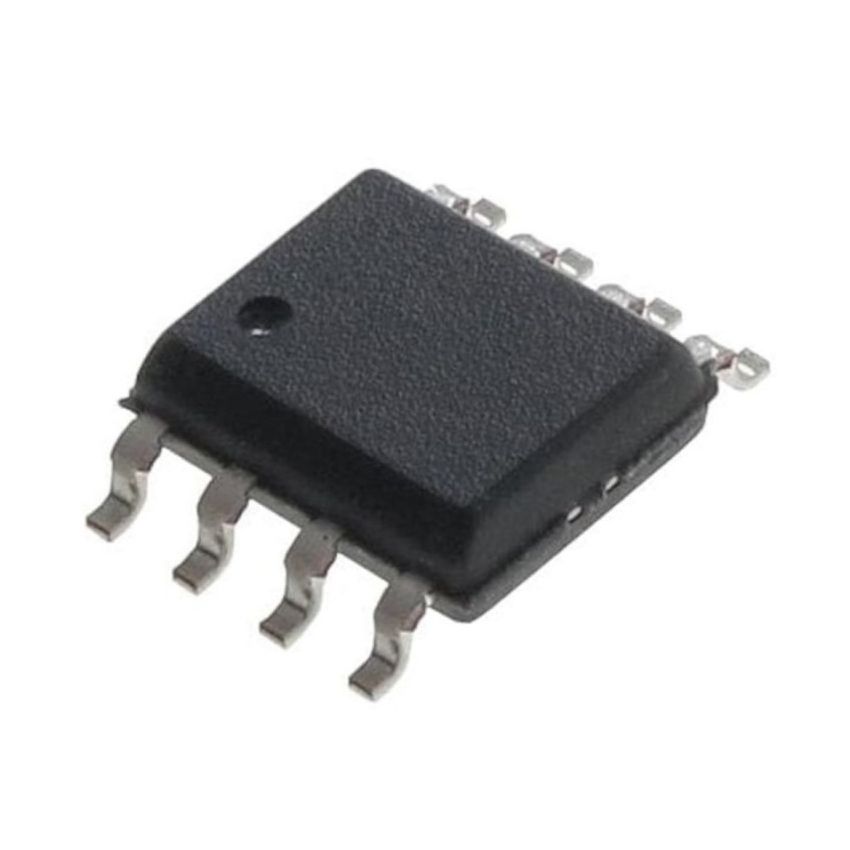

AT24C02C-SSPD-T EEPROM IC 2Kb I2C Interface 1MHz SOIC8 Low Voltage Serial Memory

The AT24C02C-SSPD-T is a 2Kb (256 x 8-bit) serial EEPROM from Microchip, offering high-performance and low-voltage operation in a compact SOIC-8 package. It supports I²C-compatible communication at speeds up to 1 MHz, making it well-suited for high-speed embedded systems, sensors, and configuration storage.

Key Features:

• 2Kb (256 x 8-bit) EEPROM with I²C interface
• Fast 1 MHz data rate for high-speed systems
• Wide operating voltage range: 1.7V to 5.5V
• Byte and page write capability (8-byte pages)
• 1,000,000 erase/write cycles per byte
• SOIC-8 surface-mount package

Additional Specifications:

• Memory Type: EEPROM
• Interface Type: I²C
• Supply Voltage: 5.5V
• Memory Size: 2Kb
