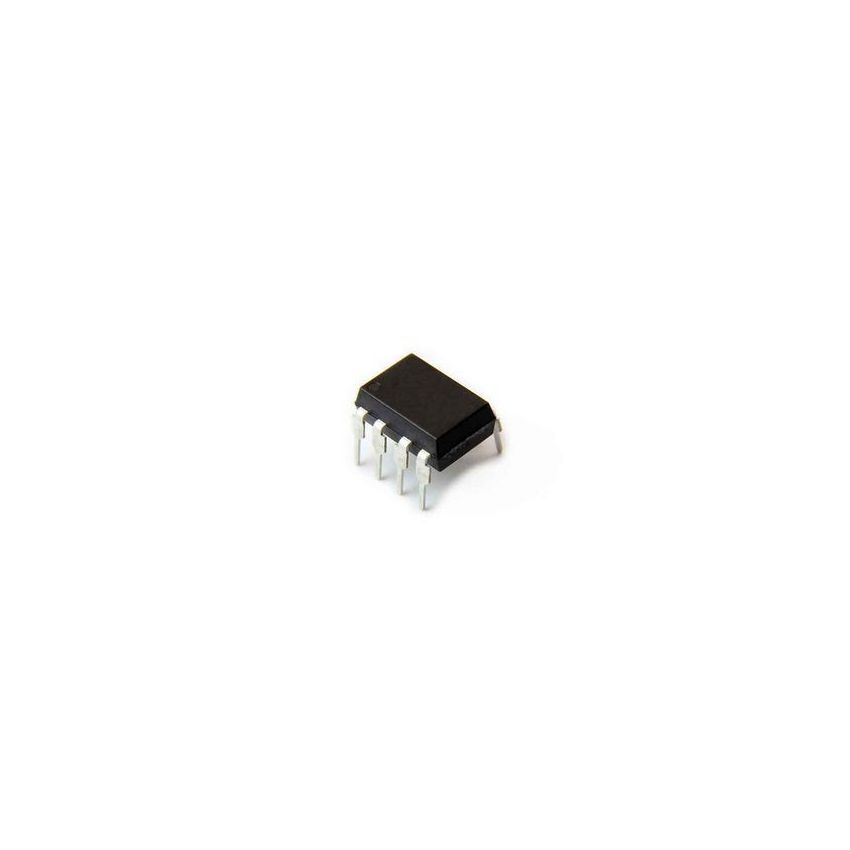

AT24C08NPU27 EEPROM IC 8Kb I2C Interface DIP8 Low Voltage Non-Volatile Memory

The AT24C08NPU27 is an 8Kb (1024 x 8-bit) serial EEPROM memory IC from Microchip Technology (formerly Atmel). It features a standard I²C 2-wire interface, making it ideal for storing small amounts of non-volatile data such as configuration, identification, or calibration values in embedded systems.

Key Features:

• 8Kb (1KB) EEPROM with 2-wire I²C serial interface
• Wide operating voltage range: 2.7V to 5.5V
• Byte and page write capability (16-byte pages)
• Endurance: 1,000,000 write/erase cycles
• Data retention: 100 years
• DIP-8 through-hole package

Additional Specifications:

• Memory Type: EEPROM
• Interface Type: I²C
• Supply Voltage: 5.5V
• Memory Size: 8Kb
