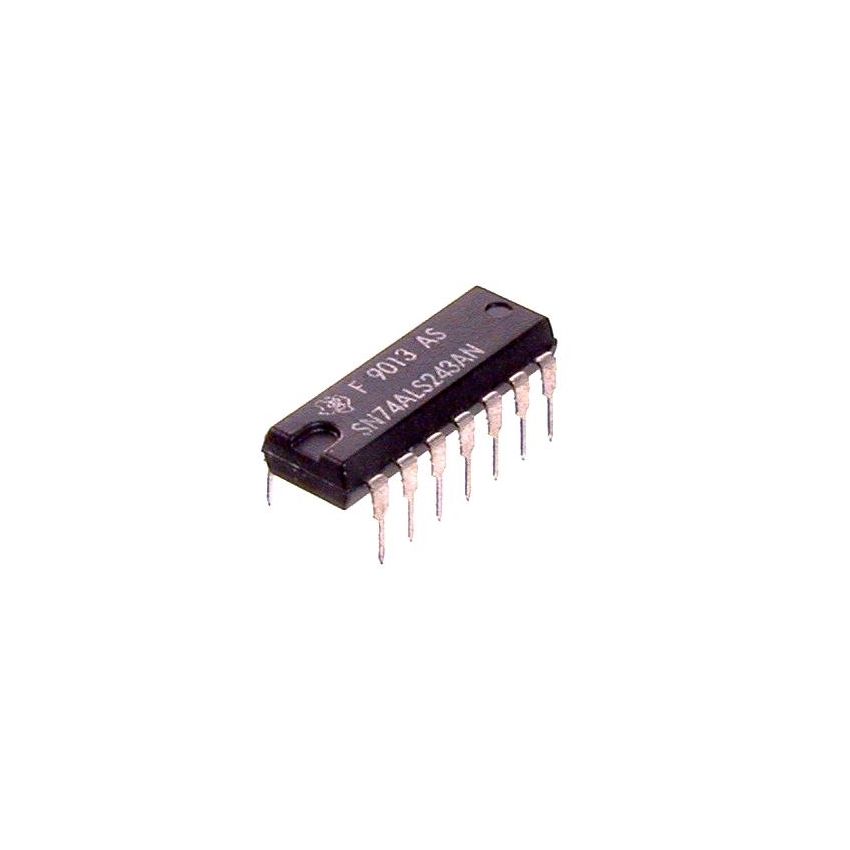

SN74ALS243AN, Quadruple Non-Inverting Bus Transceiver, 14-Pin PDIP Package

The SN74ALS243AN is a quadruple non-inverting bus transceiver designed for asynchronous two-way communication between data buses. It features 3-state outputs, allowing multiple devices to share the same data bus without interference. As part of the ALS logic family, it offers high-speed operation with low power consumption, making it suitable for various digital applications.

• Bidirectional Data Transmission – Facilitates two-way communication between data buses.
• 3-State Outputs – Allows multiple devices to share the same data bus without interference.
• Low Power Consumption – Designed for efficient operation with minimal power usage.
• High-Speed Operation – Part of the ALS logic family, offering fast propagation delays.
• Standard 14-Pin PDIP Package – Encased in a 14-pin Plastic Dual In-Line Package for straightforward PCB integration.
• TTL-Compatible Inputs and Outputs – Ensures compatibility with standard TTL logic levels.
