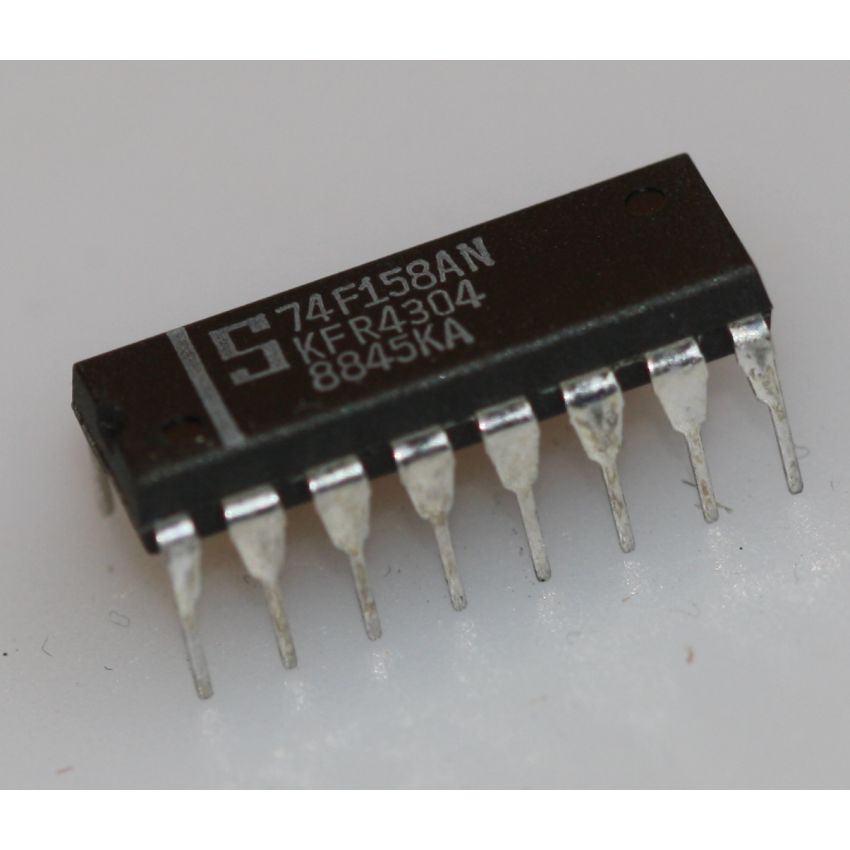

74F158AN, Quad 2-Input Multiplexer, DIP-16

The 74F158AN is a high-speed quad 2-input multiplexer that selects four bits of data from two sources under the control of a common Select input (S) and an active LOW Enable input (E). The selected data is presented in inverted form at the four outputs (Z). This device is commonly used in digital systems to route data from multiple sources to a common bus, and it can also generate any four of the 16 different functions of two variables. The 74F158AN is suitable for applications requiring high-speed data selection and inversion.

• Quad 2-Input Multiplexer: Selects four bits of data from two sources, providing flexibility in data routing.
• Inverted Outputs: Delivers the selected data in inverted form, suitable for applications requiring active-low signals.
• High-Speed Operation: Designed for rapid data processing, ensuring efficient performance in digital circuits.
• Common Select and Enable Inputs: Simplifies control by using shared select and enable lines for all four multiplexers.
• Standard TTL Compatibility: Compatible with Transistor-Transistor Logic levels, facilitating easy integration into existing systems.
• Compact DIP-16 Package: Encased in a 16-pin Dual In-line Package, ideal for through-hole mounting applications.
