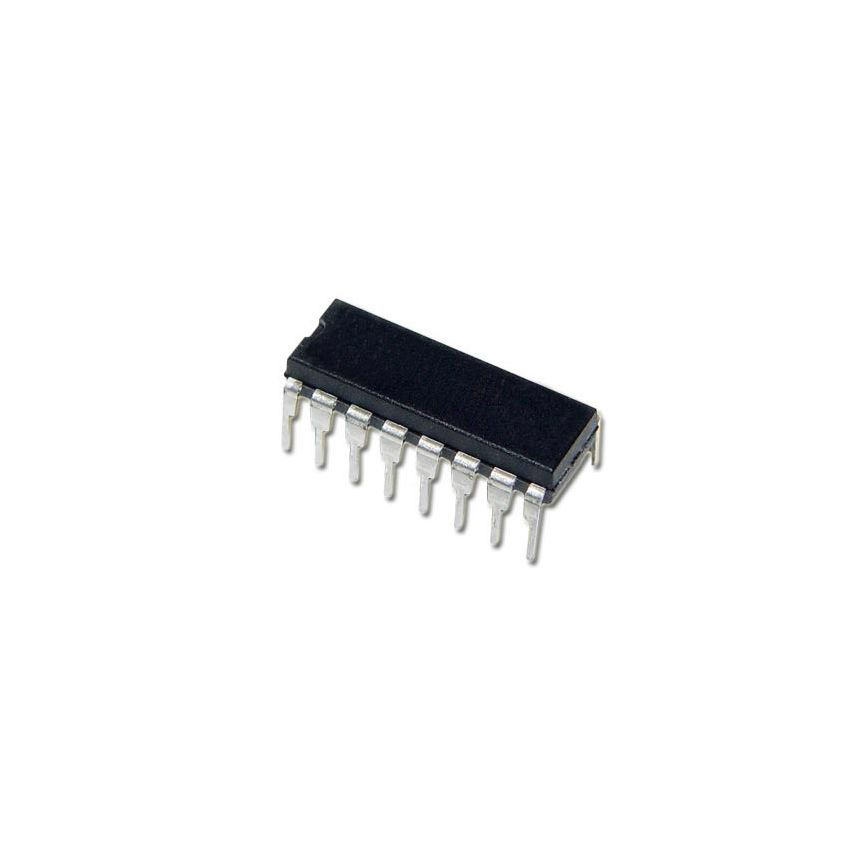

DM74LS156N, Dual 2-to-4-Line Decoder,Demultiplexer, DIP-16

SKU
SCIx0113
Part Number
DM74LS156N
Delivery in 2-5 Weeks.
Pre-Order
Out Of Stock
Add to Wish List

Notify me when this product is available:

Guarantee safe & secure checkout

The DM74LS156N is a dual 2-to-4-line decoder/demultiplexer designed for address decoding, data distribution, and function selection in digital logic circuits. It features open-collector outputs, making it suitable for wired-AND logic and applications requiring multiple ICs to share outputs. Operating within a voltage range of 4.75V to 5.25V, the DM74LS156N ensures reliable performance in TTL-based systems. Each decoder section operates independently, providing versatile data routing and control capabilities. The active-low enable inputs allow for flexible gating and expansion in complex digital designs. With its DIP-16 package, the DM74LS156N is ideal for use in address decoding, memory selection, and control logic applications.

Key Features :
  • Dual 2-to-4-Line Decoder/Demultiplexer – Functions as two independent decoders or demultiplexers in a single IC.
  • Open-Collector Outputs – Allows for wired-AND logic and easy cascading for larger decoding applications.
  • Wide Supply Voltage Range – Operates between 4.75V and 5.25V, ensuring stability in TTL-based circuits​DM74LS155.
  • Active-Low Enable Inputs – Provides precise control over data selection and activation.
  • High Fan-Out Capability – Open-collector outputs can drive multiple loads in TTL systems.
  • DIP-16 Package for Easy Integration – Through-hole design allows for convenient PCB mounting and prototyping.
Package Type DIP-16
