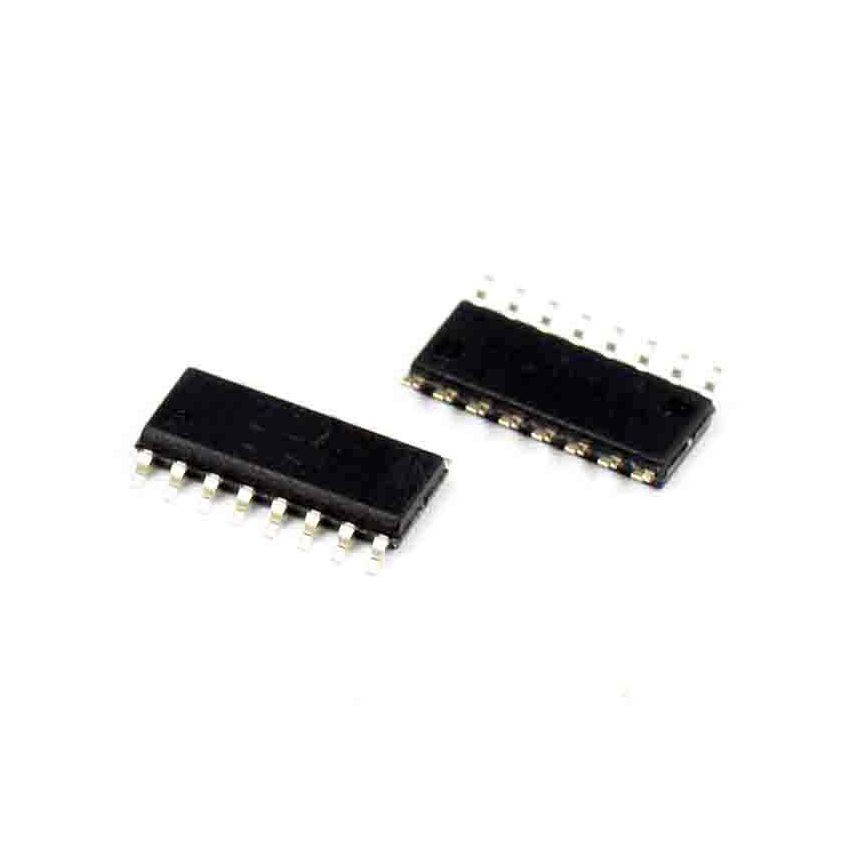

SN74LS151NSR, 8-Input Multiplexer, SOP-16

The SN74LS151NSR is a high-speed 8-input digital multiplexer that selects one of eight binary inputs (D0 to D7) based on three select inputs (S0 to S2) and routes the selected input to the output. It provides both true (Y) and inverted (W) outputs, enhancing flexibility in digital circuit design. The device operates with standard TTL voltage levels and is known for its low power consumption, making it suitable for various applications requiring efficient data selection and routing.

• 8-Input Multiplexer: Selects one of eight data inputs for a single output, facilitating efficient data routing.
• Complementary Outputs: Provides both true (Y) and inverted (W) outputs for versatile signal interfacing.
• High-Speed Operation: Designed for rapid data processing with typical propagation delays of 9.5 ns.
• Standard TTL Compatibility: Compatible with Transistor-Transistor Logic levels, simplifying integration into digital systems.
• Low Power Consumption: Features a maximum quiescent current (ICC) of 4 mA, ensuring energy-efficient performance.
• Compact SOP-16 Package: Encased in a 16-pin Small Outline Package, suitable for surface-mount applications.
