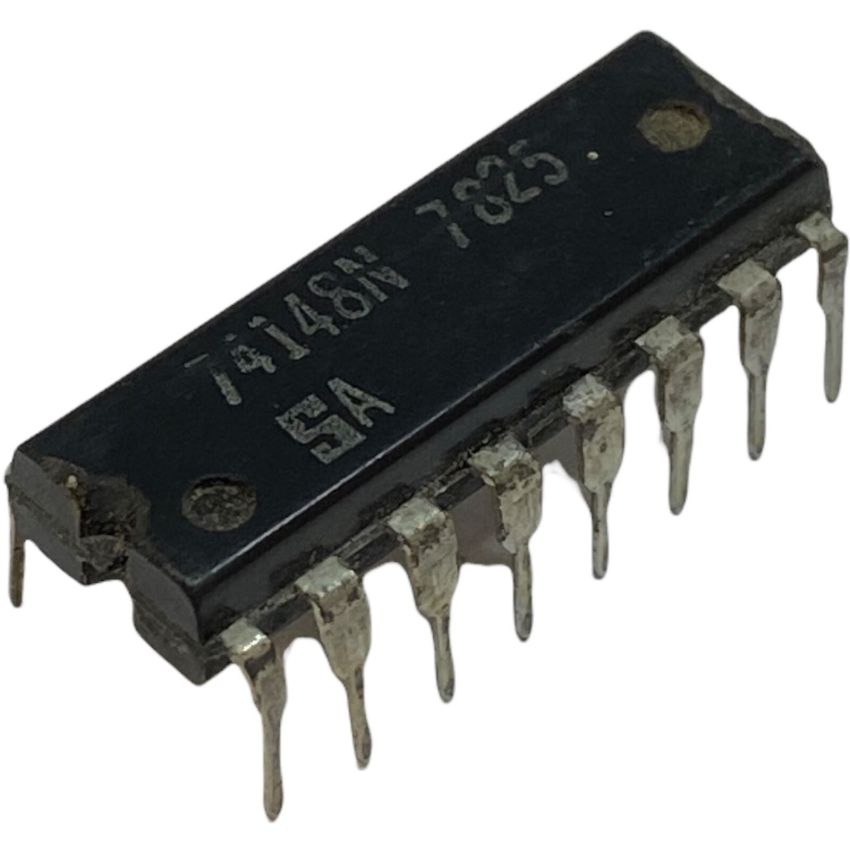

74148N,8-Line to 3-Line Priority Encoder,DIP-16

The 74148N is a high-performance 8-line to 3-line priority encoder designed for efficient digital signal processing. It prioritizes active inputs, ensuring accurate conversion of multiple inputs into a 3-bit binary code. The IC supports active low inputs and outputs, making it ideal for cascading in larger systems.

Encased in a DIP-16 package, the 74148N operates within a supply voltage range of 4.5V to 5.5V, providing compatibility with standard TTL logic levels. Its reliable performance and ease of integration make it suitable for applications in industrial automation, digital systems, and signal prioritization.

• Priority Encoding: Ensures priority among active inputs with higher-priority inputs overriding lower ones.
• 8-Line to 3-Line Conversion: Reduces multiple input lines into a 3-bit binary output.
• Active Low Inputs and Outputs: Simplifies integration with other logic circuits.
• Wide Voltage Range: Operates efficiently from 4.5V to 5.5V.
• Compact DIP-16 Package: Ideal for through-hole PCB designs.
• High Speed: Optimized for fast logic operations in digital systems.
