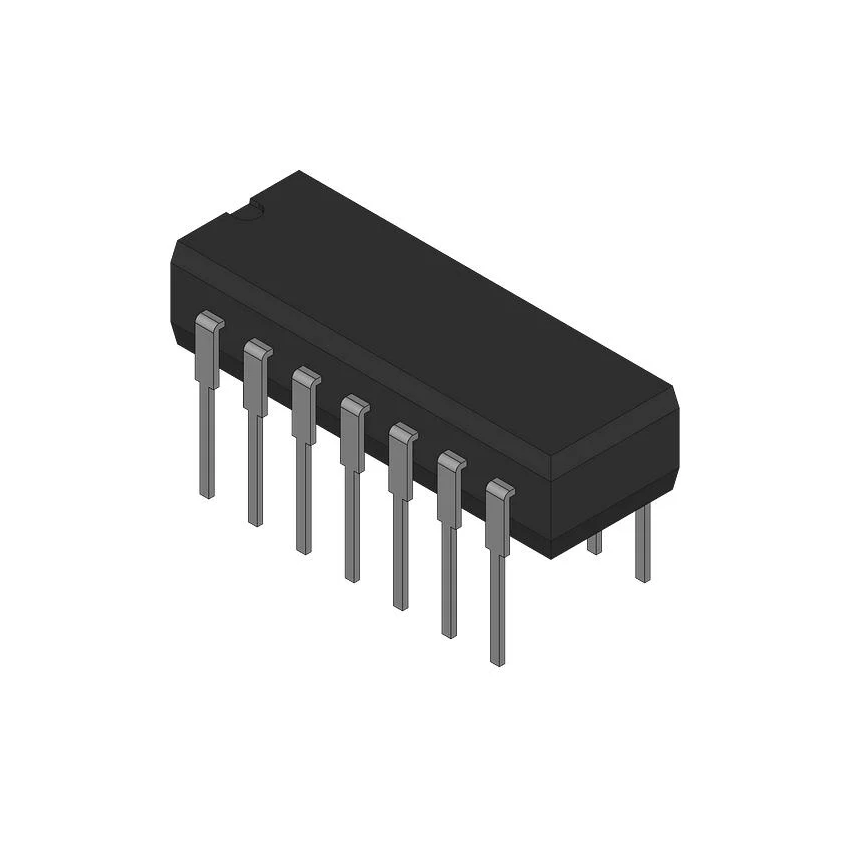

SN74LS93N Counter IC 4 Bit Binary Counter DIP14 TTL Negative Edge Triggered

The SN74LS93N is a high-speed 4-bit binary counter IC from the 74LS TTL logic family. It consists of four flip-flops internally configured as two sections: a 1-bit divide-by-2 and a 3-bit divide-by-8 counter. This combination enables the IC to divide the input frequency by any number from 1 to 16 with appropriate logic.

Key Features:

• 4-bit binary ripple counter with divide-by-two and divide-by-eight sections
• TTL-compatible inputs and outputs
• Asynchronous clear and preset capabilities
• Negative-edge triggered flip-flops
• DIP-14 through-hole package
• Ideal for frequency division and counting applications

Additional Specifications:

• Package Type: DIP-14
• Type: 4-Bit Binary Ripple Counter
• Timing Mode: Asynchronous
• Supply Voltage: 5.25V
• Count Rate: CP0 to Q0
