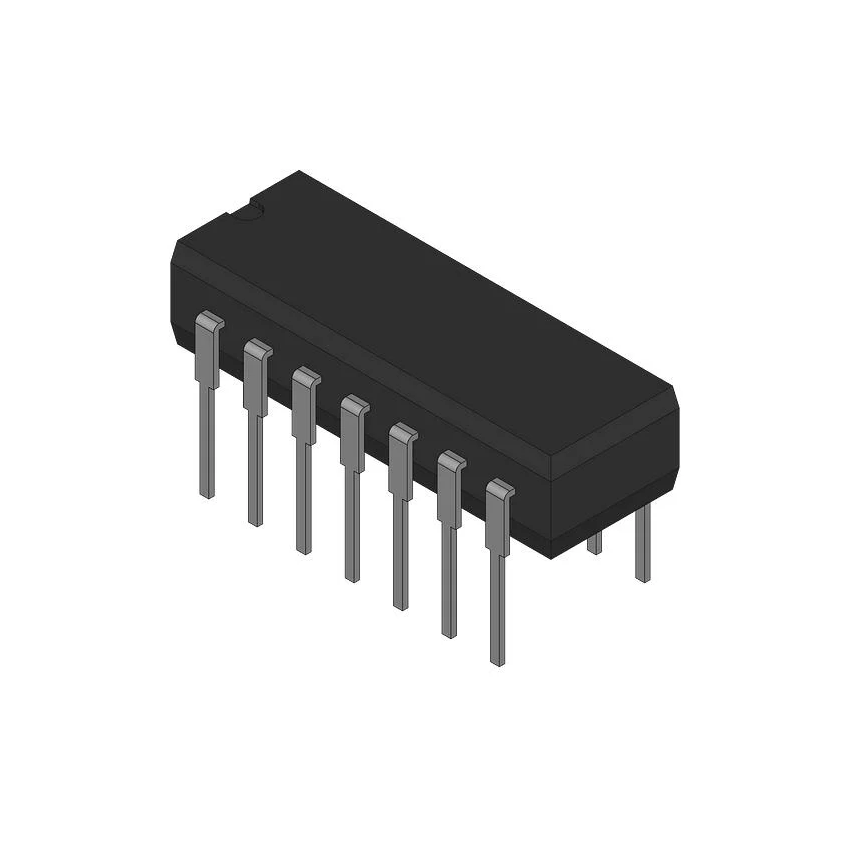

74S51PC AND OR INVERT Gate IC Dual Function Logic DIP14 High-Speed TTL

The 74S51PC is a high-speed TTL logic IC that provides dual 2-wide 2-input AND-OR-INVERT functions. Each gate consists of two AND gates feeding into a NOR structure, producing an AOI (AND-OR-INVERT) logic output. This IC is particularly useful in creating compact and efficient combinational logic systems without requiring multiple separate gate ICs.

Key Features:

• Dual 2-wide 2-input AND-OR-INVERT (AOI) logic gates
• TTL-compatible inputs and outputs
• High-speed Schottky design
• Typical propagation delay: 4 ns
• Standard DIP-14 package for through-hole mounting
• Ideal for complex combinational logic circuits

Additional Specifications:

• Package Type: DIP-14
• Product Type: Dual 2-Wide 2-Input AND-OR-INVERT Gate
• Input Low Voltage: 0.8V
• Input High Voltage: 2.0V
• Propagation Delay Time: 6 ns
• Logic Gate Type: AND-OR-INVERT
• Supply Voltage: 5.25V
