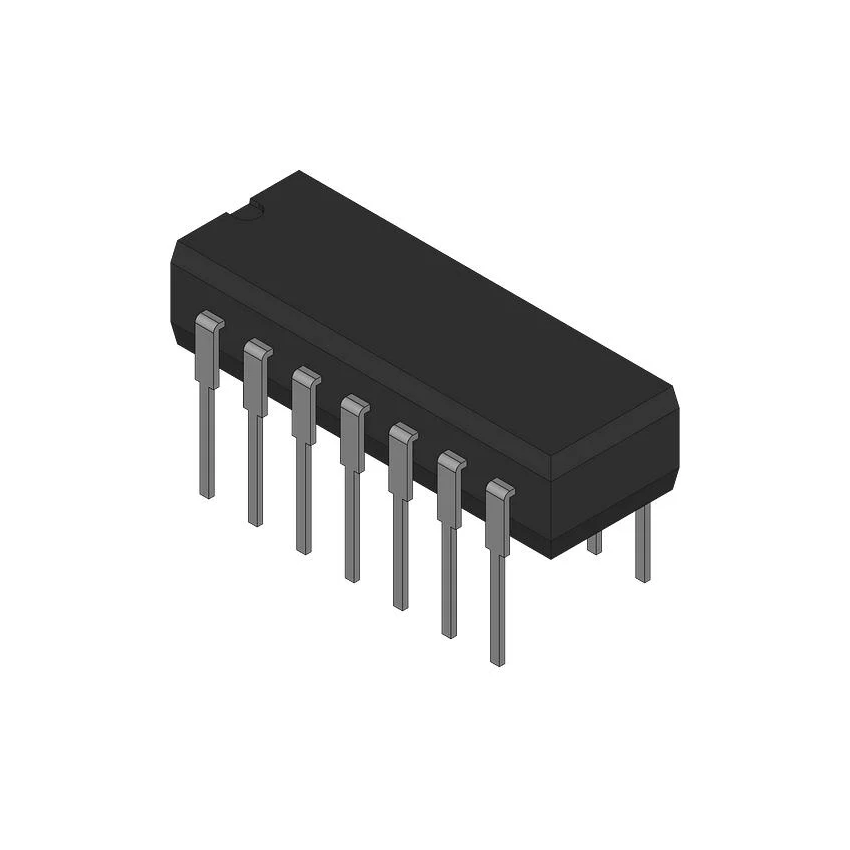

SN74HC32N OR Gate IC 4 Channel DIP14 High-Speed CMOS Logic IC

The SN74HC32N is a high-speed CMOS logic IC containing four independent 2-input OR gates. Each gate performs the logic function Y = A + B. It is part of the Texas Instruments 74HC series, designed for both TTL and CMOS compatibility, enabling seamless operation in mixed-signal environments.

Key Features:

• Contains four independent 2-input OR gates
• Wide supply voltage range: 2V to 6V
• Fast switching: 8 ns typical propagation delay
• High noise immunity and TTL compatibility
• Low power consumption with CMOS technology
• DIP-14 through-hole package for easy prototyping

Additional Specifications:

• Package Type: DIP-14
• Product Type: Quad 2-Input OR Gate
• Input Low Voltage: 5V
• Input High Voltage: 5V
• Propagation Delay Time: 8 ns
• Logic Gate Type: OR Gate
• Supply Voltage: 6V
