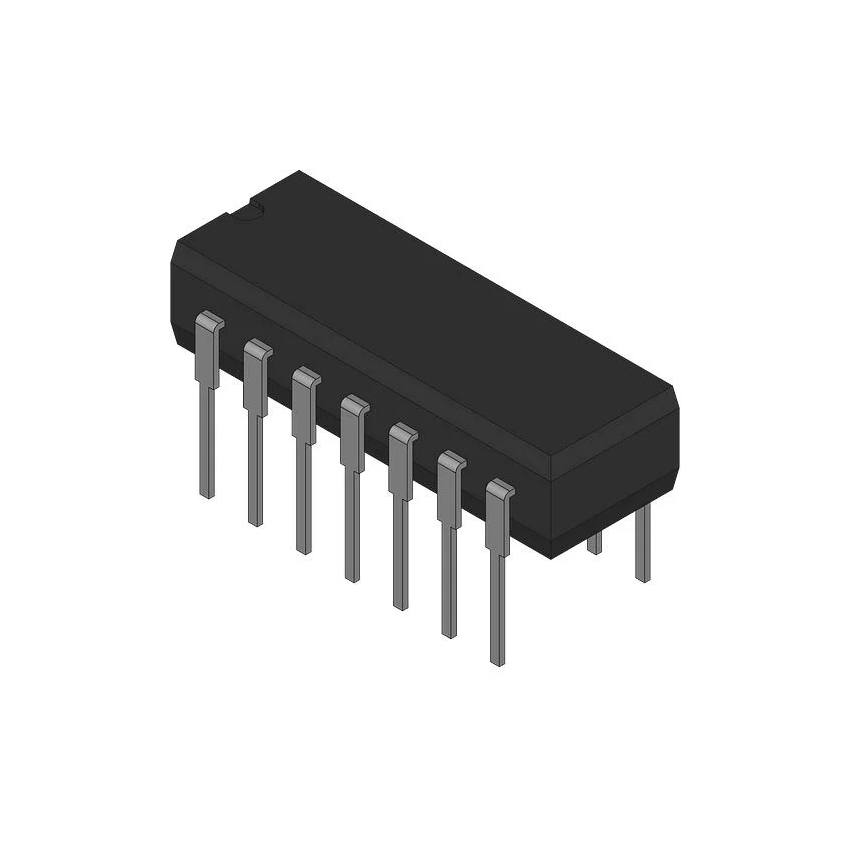

DM74S08N AND Gate IC 4 Channel 14MDIP High-Speed Bipolar Logic TTL

The DM74S08N is a quad 2-input AND gate IC based on high-speed Schottky TTL technology. Each gate performs the Boolean operation Y = A · B. The device contains four independent AND gates, providing excellent signal integrity and fast switching capabilities suitable for performance-critical applications.

Key Features:

• Contains four independent 2-input AND gates
• TTL-compatible inputs and outputs
• Typical propagation delay: 3 ns
• Fan-out of 10 LS-TTL loads
• Low power Schottky design
• DIP-14 through-hole package for easy prototyping

Additional Specifications:

• Package Type: DIP-14
• Product Type: Quad 2-Input AND Gate
• Input Low Voltage: 0.8V
• Input High Voltage: 2.0V
• Propagation Delay Time: 3 ns
• Logic Gate Type: ND Gate
• Supply Voltage: 5.25V
