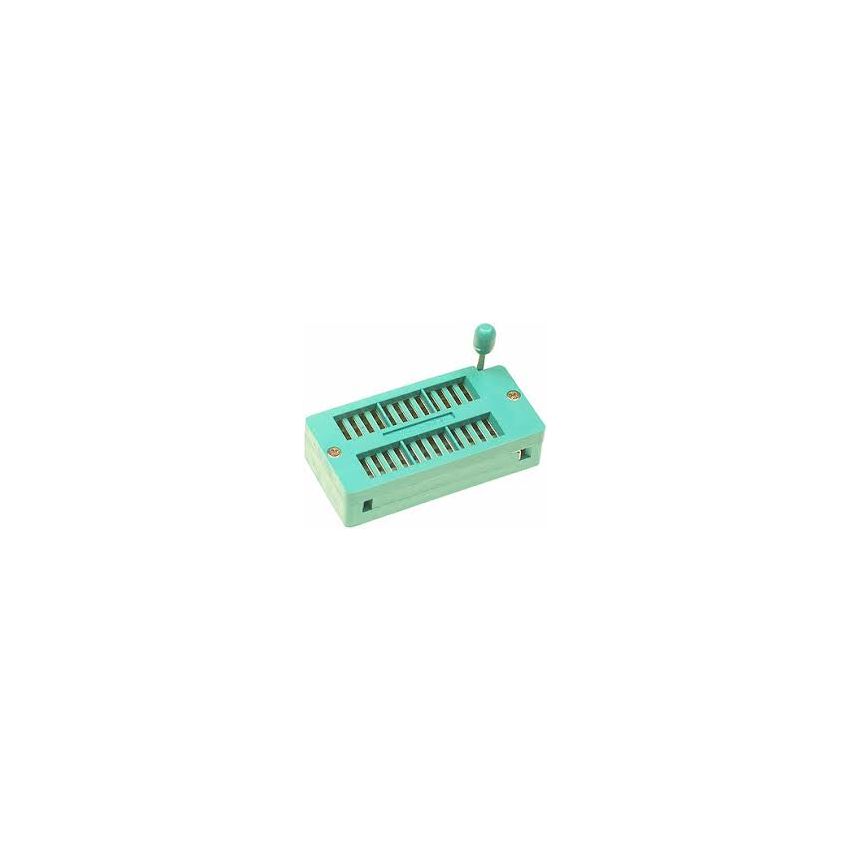

24-Pin ZIF Socket – Universal 0.3" to 0.6" Wide DIP Testing & Programming Socket, Lever-Actuated High-Retention IC Interface

The 24-Pin ZIF Socket is an essential hardware component for anyone involved in chip programming, hardware debugging, or quality control. Unlike standard IC sockets, which require force to insert and remove a chip—often leading to fatigue in both the socket and the IC leads—the ZIF socket eliminates mechanical stress entirely. By simply lifting the integrated lever, the internal contact jaws open wide, allowing the component to be placed effortlessly. This 24-pin variant is particularly versatile as it accommodates both small-signal ICs (like logic gates) and larger-format chips (such as EPROMs and microcontrollers). It is a staple component on universal programmers like the TL866II Plus or the CH341A, as well as on specialized Arduino or ESP32 development shields used for bulk-flashing firmware. The socket's body is constructed from glass-reinforced, high-temperature plastic, ensuring it remains stable even when used in environmental test chambers or during prolonged soldering processes. Whether you are building a custom bios-flasher, a component tester, or a prototyping board that requires frequent IC swaps, the 24-pin ZIF socket provides a robust, professional, and reliable interface.

Key Features:

Universal Compatibility: Specially designed to accept DIP (Dual In-Line Package) integrated circuits ranging from 0.3" (Narrow) to 0.6" (Wide) row spacing.

High-Durability Contacts: Equipped with dual-sided, gold-plated or tin-plated beryllium copper contacts that ensure low electrical resistance and maintain a secure "gas-tight" grip over thousands of cycles.

Extended Service Life: Rated for high-cycle use, making it the industry standard for IC programmers, testing fixtures, and development boards.

Tool-Free Operation: The integrated locking lever provides a mechanical advantage to secure the IC firmly in place, allowing for rapid swapping and debugging during firmware development.

Standard 0.1" (2.54mm) Pin Pitch: Features rugged, through-hole pins that fit perfectly into standard breadboards, stripboards, and specialized PCB footprints.
