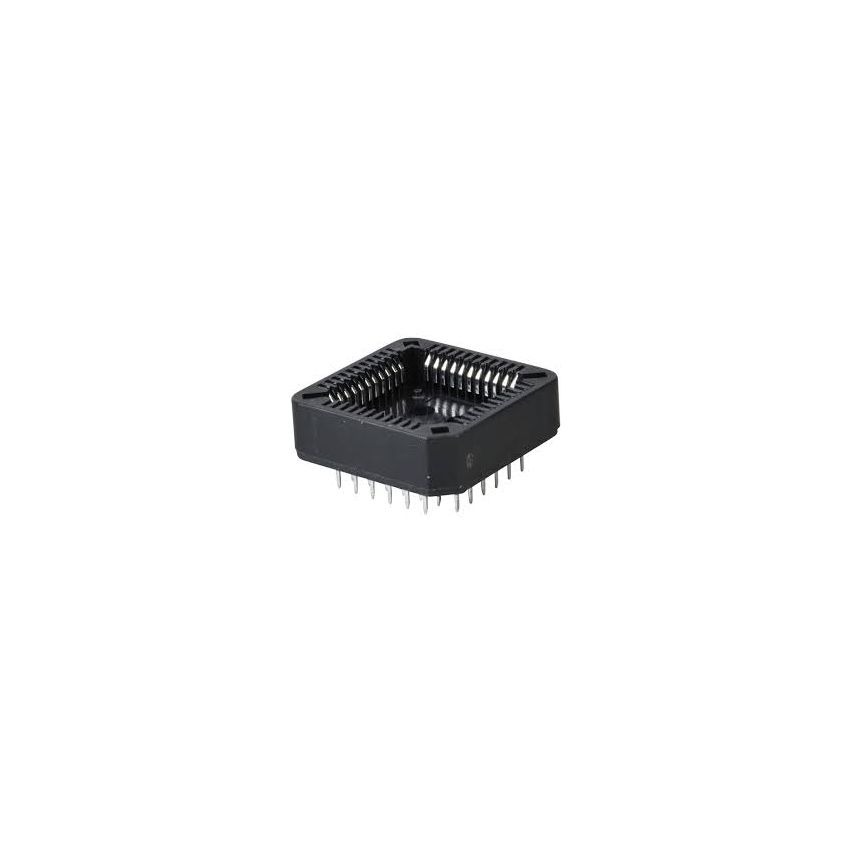

44-Pin PLCC Socket – Surface Mount (SMT) or Through-Hole (TH) IC Adapter for Plastic Leaded Chip Carriers, High-Reliability J-Lead Interface

The 44-Pin PLCC Socket is a critical component for developers and engineers working with high-pin-count integrated circuits. By using a socket instead of soldering the chip directly to the board, you allow for easy firmware updates, rapid troubleshooting, and the protection of sensitive silicon from the heat of the initial soldering process. This 44-pin version is widely used for 8-bit microcontrollers (such as the 8051 family), programmable logic devices, and older graphics or interface controllers. The internal contact geometry is optimized for the "J-bend" leads of the PLCC package, ensuring that pressure is distributed evenly across all 44 pins. This prevents signal intermittent issues that can occur with lower-quality adapters. The socket’s design allows for the use of a standard PLCC extraction tool, which is highly recommended to avoid damaging the socket’s sidewalls or bending the internal spring contacts during chip removal. Whether you are building a prototype for an industrial automation system or repairing a piece of legacy telecommunications equipment, this PLCC socket provides a reliable, professional-grade mounting solution. It bridges the gap between the flexibility of a socketed design and the space-saving benefits of surface-mount technology.

Key Features:

Polarized Orientation: Features a distinct chamfered (angled) corner that corresponds to the Pin 1 indicator on the IC, ensuring error-free chip installation.

Robust Retention Springs: Equipped with high-tension, tin-plated phosphor bronze contacts that maintain a "gas-tight" connection with the J-leads, providing excellent performance in high-vibration environments.

Open-Bottom Frame: Designed with a center aperture to improve thermal dissipation and allow for visual inspection of solder pads or traces underneath the socket.

High-Temperature Housing: Constructed from glass-reinforced thermoplastic (PPS or PBT), capable of withstanding standard industrial reflow and wave soldering temperatures.

Low Profile & Space Saving: Maximizes PCB real estate by utilizing a square footprint that matches the compact geometry of the PLCC-44 package.
