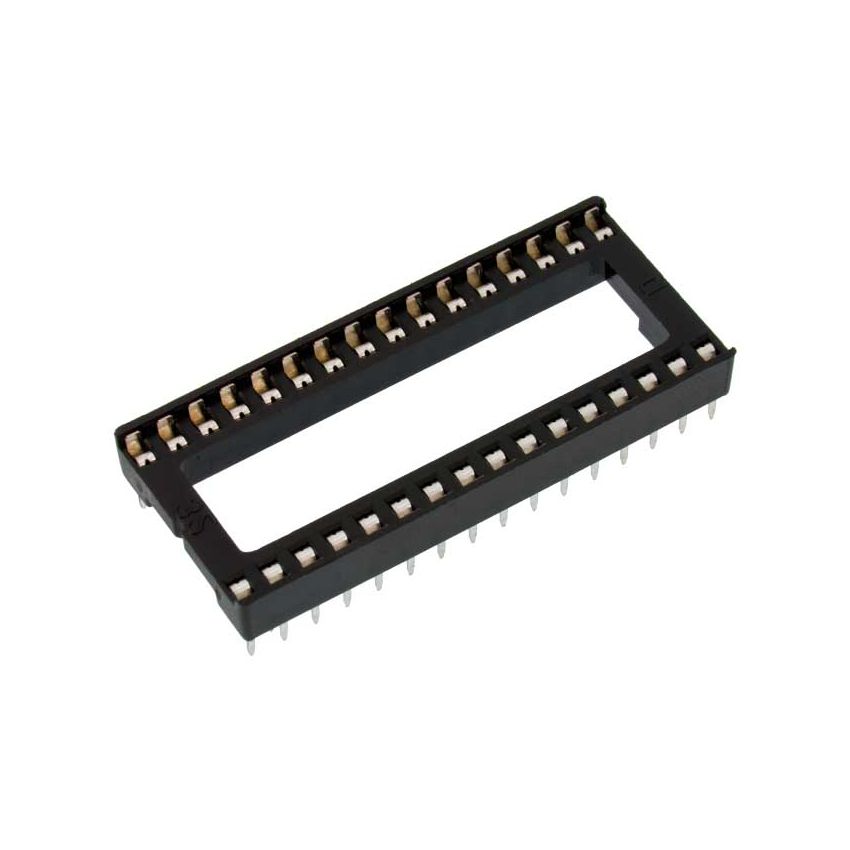

32 Pin Dual In Line Package IC Socket

A 32 pin IC socket is a mechanical connector used to provide a removable interface for integrated circuits with 32 pins. It allows for the easy replacement or upgrading of chips without the need for desoldering, which protects the sensitive semiconductor from heat damage during assembly and repair. These sockets are typically designed for Dual In Line Package components, often referred to as wide body chips. The socket body is made of high temperature thermoplastic designed to withstand wave soldering. Inside each hole is a dual leaf or turned pin contact that ensures a reliable electrical connection with the IC pins. Most 32 pin sockets include a notch at one end to indicate pin 1 orientation, matching the notch on the IC itself. These are commonly used for memory chips, microcontrollers, and large logic devices in both prototyping and production environments.

Key Features:

Pitch: 2.54 millimeters or 0.1 inch standard spacing between pins.

Row to row spacing: 15.24 millimeters or 0.6 inches for wide body ICs.

Contact material: Phosphor bronze or brass with tin or gold plating.

Current rating: Typically 1 Ampere per contact.

Insulation resistance: 1000 Megohms minimum.
