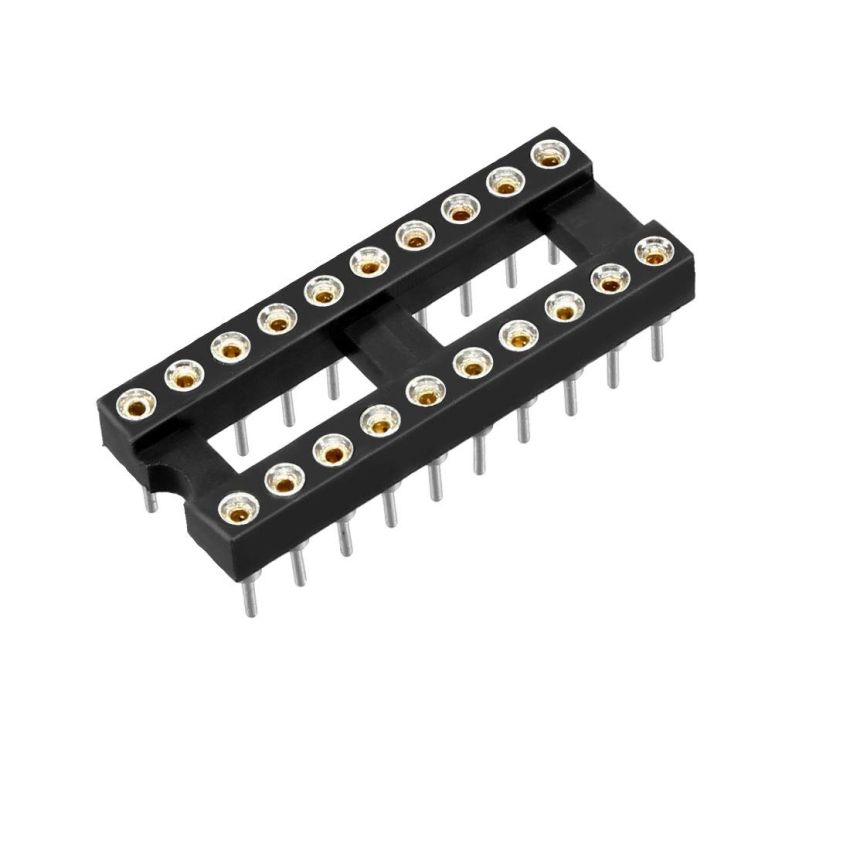

IC SOCKET 20PIN Dual In Line DIP Type Tin Plated Contacts Through Hole Mounting

This 20-pin IC socket is designed to securely house integrated circuits in dual in-line packages (DIP) for easy mounting, replacement, or prototyping on printed circuit boards. The socket features a durable black thermoplastic body with precision-formed contacts that are tin-plated to enhance electrical conductivity and prevent corrosion. The 2.54mm standard pin pitch and through-hole design make it widely compatible with standard PCBs. IC sockets are especially useful for protecting sensitive chips from heat damage during soldering and allowing easy future upgrades or replacements in circuit designs.

Key Features:

• Standard 20-pin dual in-line (DIP) configuration.
• Designed for through-hole mounting on PCBs.
• Tin-plated contacts ensure good conductivity and solderability.
• Ideal for prototyping and IC replacement without soldering.
• Black thermoplastic housing provides high durability.
• Suitable for ICs with 2.54mm (0.1") pin pitch.

Additional Specifications:

• Package Type: DIP
• Mounting Type: Through Hole
• Number of Pins: 20
• Pitch (Spacing): 2.54 mm
• Contact Material: Tin-plated phosphor bronze
