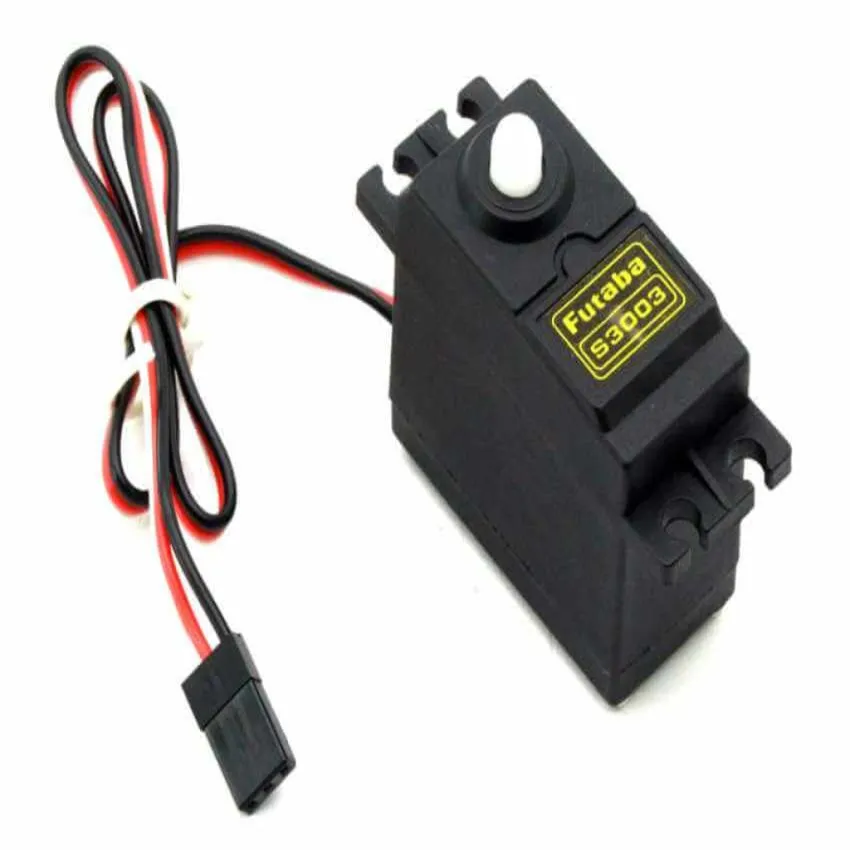

S3003 SERVO MOTOR
Out of Stock
Out Of Stock
Guarantee safe & secure checkout
Guarantee safe & secure checkout
Model: Futaba S3003
Dead Band: 0.100 ms
Control System: +Pulse Width Control
Working Frequence: 20ms period / 50hz (Analog Control)
(RX) Required Pulse: 3.0 ~ 5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8 ~ 6 V DC Volts
Operating Temperature Range: -0 to + 55 Degree C
Operating Speed (4.8v): 0.200 sec/60° degrees at no load
Operating Speed (6v) 0.160 sec/60° degrees at no load
Stall Torque (4.8v): 9.4kg/cm
Stall Torque (6v): 11kg/cm
Motor Type: Brushed Motor
Potentiometer Drive: Direct Drive
Bearing Type: No Bearing
Gear Type: Plastic Gears
Case Material: Plastic
Programmable: NO
Connector Wire Length: 32.0cm (12.6 inch)
Dimensions: 40.7×19.7×42.9mm
Weight: 37 grams (1.3 oz)
Brand | Futaba |
---|---|
GTIN | 11111111 |
Voltage | 4.8 - 7.2V |
