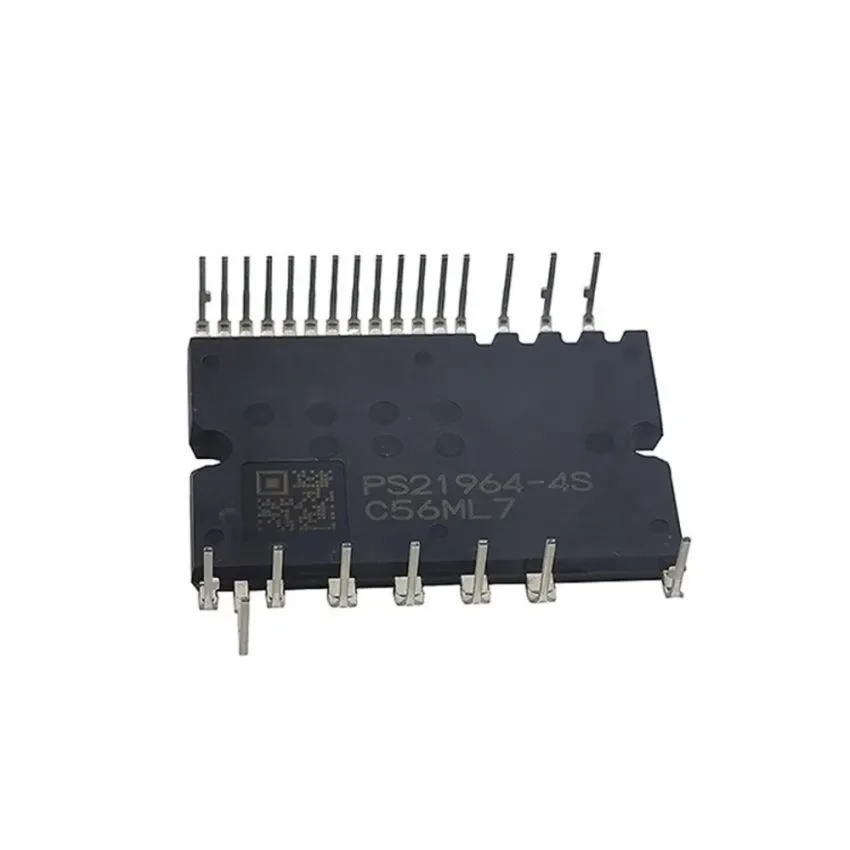

PS21964-4S, Intelligent Power Module, 600V, 15A, Transfer-Mold, Insulated

The PS21964-4S is a high-performance intelligent power module (IPM) designed for AC motor drives and inverters, providing a reliable solution for motor control applications. It integrates an IGBT inverter bridge, fault signaling systems, and various protection features in a compact, dual-in-line package.

With a low loss 5th generation IGBT design, this module supports three-phase DC-AC power conversion. It includes advanced control mechanisms for short circuit, over-current, and under-voltage protections, ensuring operational safety and efficiency in demanding environments such as motor drives for home appliances.

Key Features :

• Supports high-speed switching with integrated control circuitry.
• Fault signaling for short circuit, under-voltage, and over-current events.
• Built-in bootstrap diodes for each phase to simplify design.
• High reliability with isolation voltage rating of 2500 Vrms/min.
• Suitable for home appliance motor drives and industrial motor control systems.
• 600V, 15A IGBT inverter bridge with integrated protection circuits.
