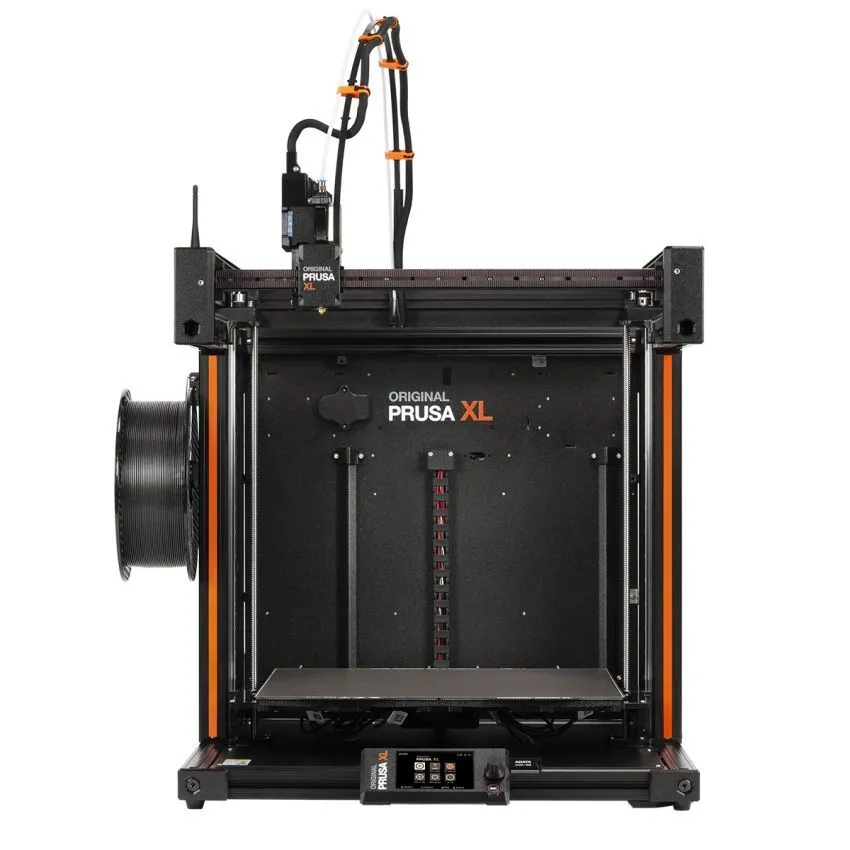

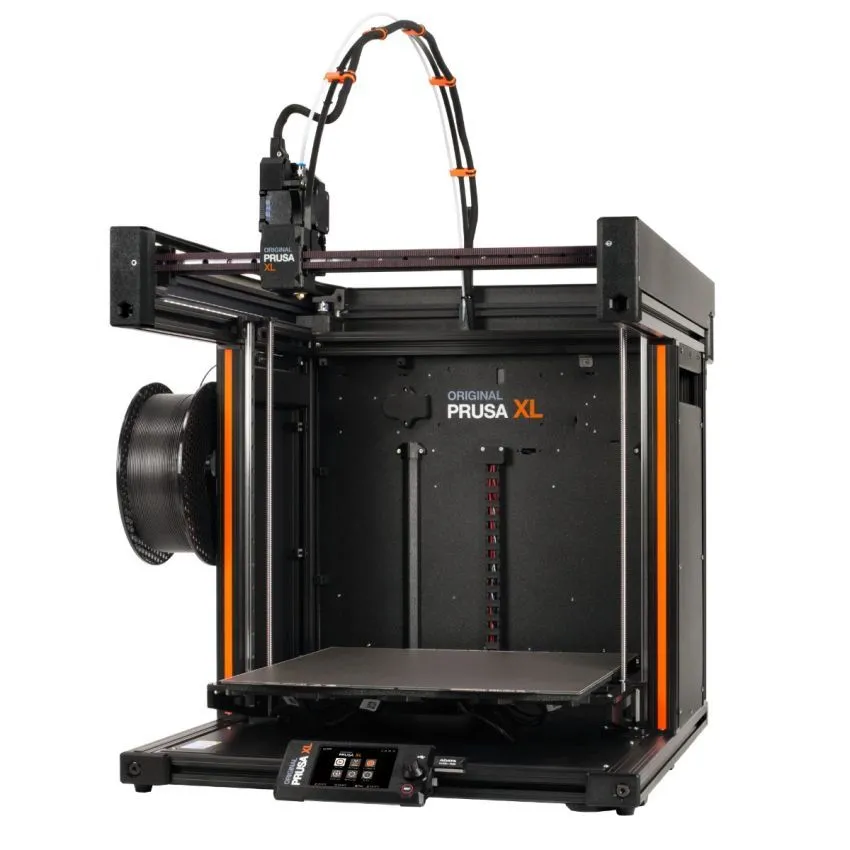

Original Prusa XL Semi-assembled Single-toolhead 3D Printer

The Original Prusa XL is a next-generation Prusa XL 3D printer designed for professionals, creators, and innovators who require advanced performance in a desktop format. Built with a CoreXY motion system, it delivers high-speed and precise printing while maintaining stability and consistency.

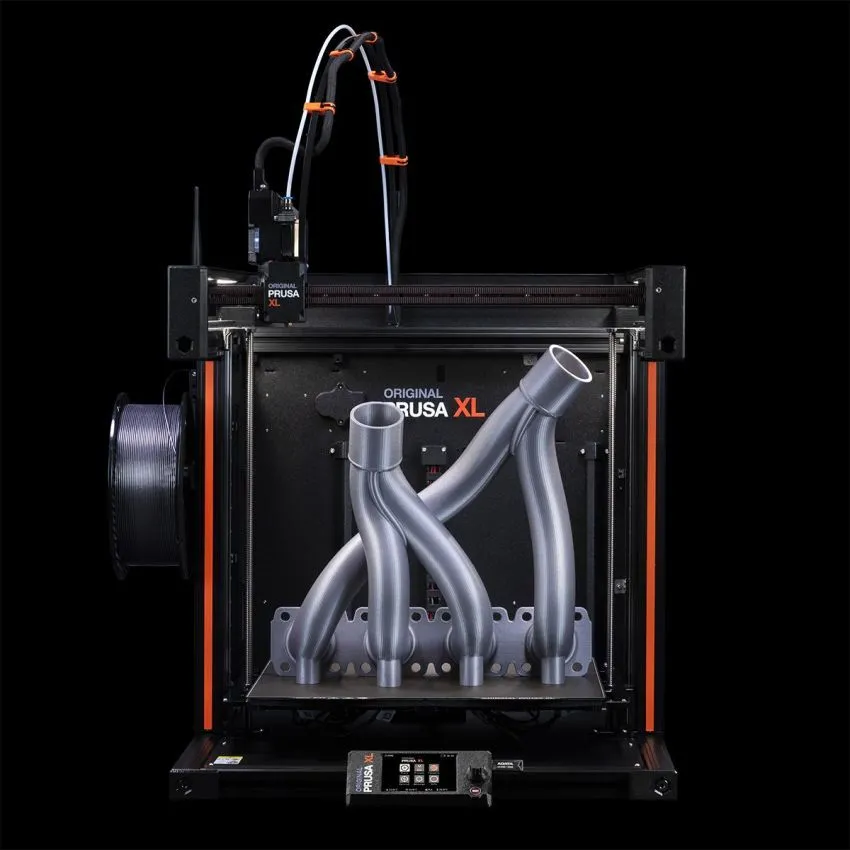

With a massive Prusa XL build volume of 360 × 360 × 360 mm, this printer allows users to produce large parts or multiple components in a single batch. Its rigid aluminum frame ensures durability, while the segmented heated bed activates only the required sections to improve energy efficiency.

The Original Prusa XL supports up to five independent toolheads, making it ideal for multi-material and multi-color printing without compromising speed or reliability. Combined with a loadcell-based automatic bed leveling system, it ensures accurate first-layer calibration and consistent print results.

Designed for flexibility, the printer supports a wide range of materials, making it suitable for various applications. With advanced connectivity options and a user-friendly interface, the Prusa XL offers a complete and efficient 3D printing experience.

Key Features

• Multi-Toolhead System: Supports up to 5 toolheads for multi-material and multi-color printing

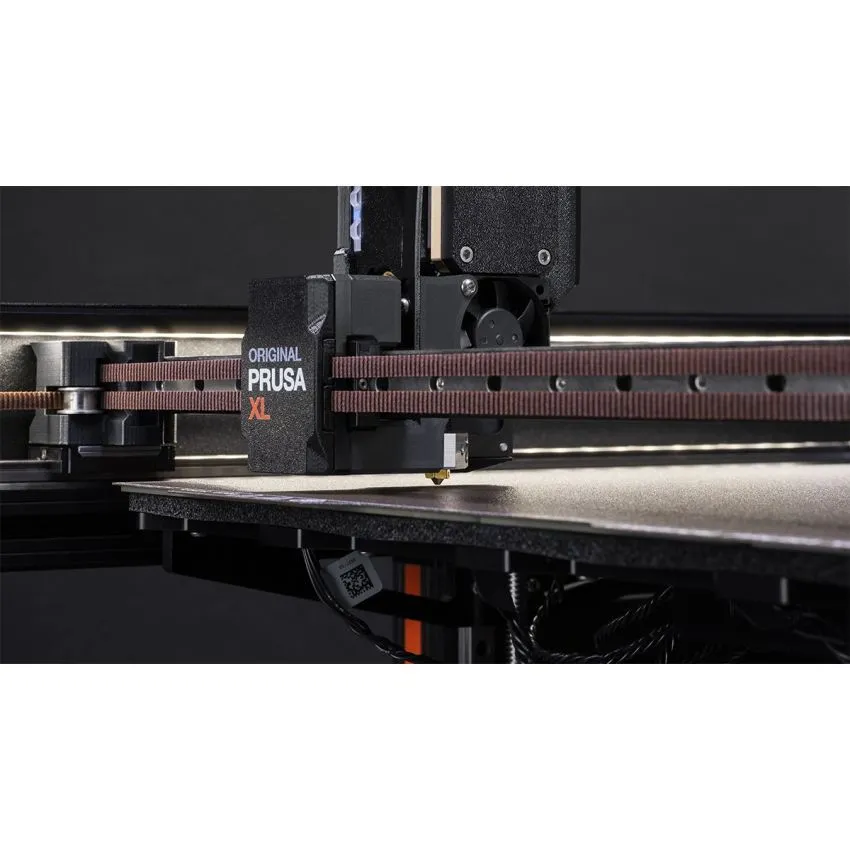

• CoreXY Motion System: Provides high-speed and precise movements
• Segmented Heated Bed: Heats only the necessary sections to reduce power consumption
• Automatic Bed Leveling: Loadcell sensor ensures precise first-layer calibration
• Filament Sensor: Detects filament presence to prevent print failures
• Power Panic: Resumes printing after power outages
• Silent Operation: Equipped with Trinamic 0.9° stepper drivers for quieter performance
• Modular Design: Allows future upgrades and modifications

Supported Materials

• PLA
• PETG
• ABS
• ASA
• TPU
• Polycarbonate (PC)
• Nylon
• Polypropylene (PP)
• Composite Materials (e.g., Carbon Fiber, Woodfill)

Technical Specifications

• Print Technology: Fused Deposition Modeling (FDM)
• Build Volume: 360 × 360 × 360 mm (14.17 × 14.17 × 14.17 in)
• Layer Height: 0.10 – 0.30 mm
• Nozzle Diameter: 0.4 mm (Easy-to-swap)
• Filament Diameter: 1.75 mm
• Maximum Nozzle Temperature: 290 °C
• Maximum Heated Bed Temperature: 120 °C
• Print Bed: Segmented Magnetic Heated Bed with Removable PEI Spring Steel Sheet
• Frame Construction: Aluminum Extrusions with 3D Printed Parts
• Connectivity: USB, LAN, Wi-Fi, Prusa Connect App
• Control Interface: 3.5" Full-Color Graphic LCD with Rotary Knob
• Firmware: 32-bit xBuddy Board with Marlin Firmware
• Dimensions: 700 × 900 × 720 mm (27.56 × 35.43 × 28.35 in)
• Weight: 25.3 kg (55.78 lbs)

What’s Included

• Original Prusa XL 3D Printer (Semi-Assembled or Fully Assembled)
• Removable PEI Spring Steel Sheet
• Power Cable
• USB Drive with Sample Prints (G-codes)
• 3D Printing Handbook
• Toolset: Uni-wrench, 13–16 Wrench, Nose Pliers, Allen and Torx Keys
