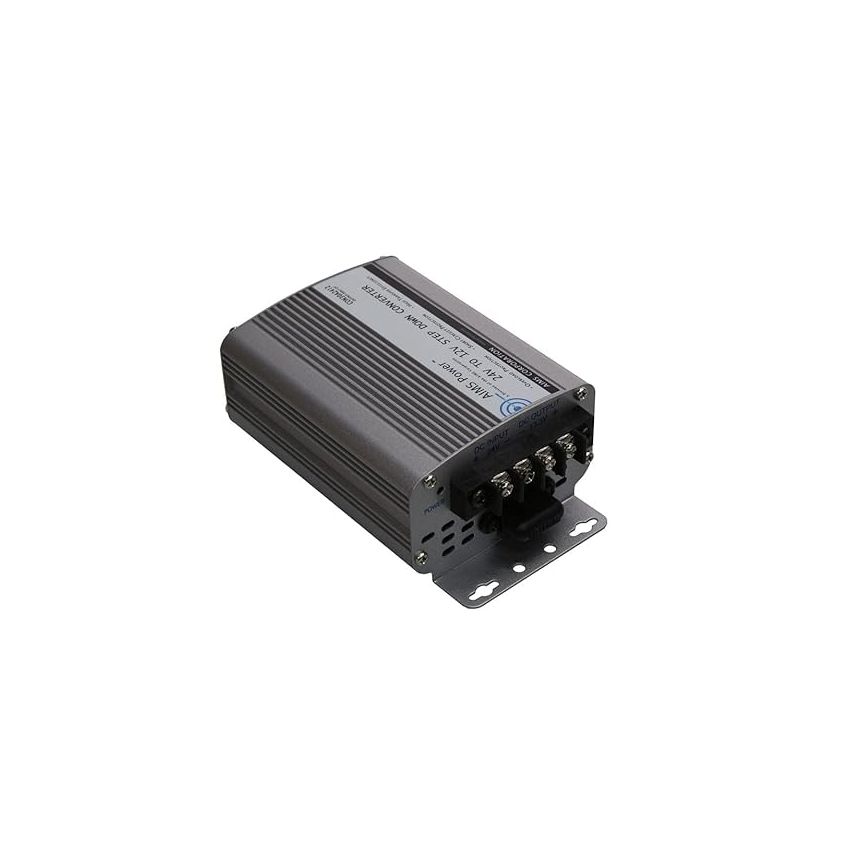

CON60A2412 AIMS Power DC-DC Converter 60A 24V to 12V

The AIMS Power CON60A2412 is a compact and efficient DC-DC converter designed to step down 24 VDC nominal input (ranging from 20 VDC to 37 VDC) to a stable 12 VDC nominal output at 60 Amps. This converter is ideal for applications requiring reliable voltage conversion, such as automotive, RV, and off-grid systems. Its high conversion efficiency of over 90% ensures minimal energy loss during operation. The unit is equipped with multiple protection features, including over-temperature, over-load, input low battery shutdown, input high battery shutdown, output short-circuit, over-current, and over-voltage protections, ensuring safe and reliable performance. The durable aluminum casing provides optimal cooling, and the green LED indicator confirms power status. With its user-friendly terminal block design, installation is straightforward, making it a versatile solution for various DC power conversion needs.​

Key Features:

• High Conversion Efficiency: Achieves over 90% efficiency for optimal performance.​
• Robust Protection Mechanisms: Equipped with over-temperature, over-load, and short-circuit protections.​
• Wide Input Voltage Range: Accepts 20-37 VDC input, providing flexibility for various applications.​
• Stable Output: Delivers a regulated 12.5-13.5 VDC output at up to 60 Amps.​
• Durable Construction: Aluminum casing ensures optimal cooling and durability.​
• User-Friendly Design: Features a green LED indicator and terminal block for easy installation.​

Additional Specifications:

• Converter Type: Step-Down DC-DC Converter
• Input Voltage: 20-37 VDC
• Output Voltage: 12.5-13.5 VDC
• Max Output Current: 60 Amps
