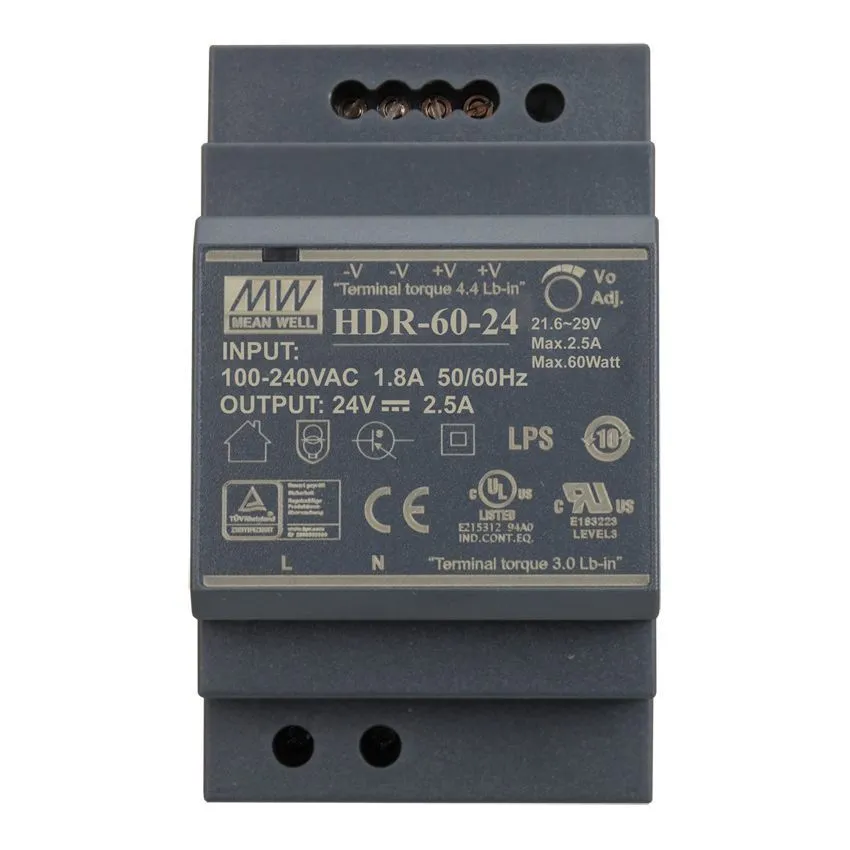

HDR-60-24 DIN Rail Power Supply 24V 2.5A 60W Wide Input Range

The HDR-60-24 by MEAN WELL is a compact and efficient DIN-rail mount AC-DC power supply, providing a regulated 24V DC output at 2.5A, with a total power output of 60W. It is part of the HDR series, designed for industrial control, building automation, and household electrical applications where space and reliability are critical.

Key Features:

• 24V DC regulated output with up to 2.5A current (60W max)
• Ultra-compact 60W DIN rail mount design (HDR series)
• Wide AC input range: 100–240V AC / 47–63Hz
• Adjustable output voltage from 21.6V to 29V via potentiometer
• Built-in overload, overvoltage, and short-circuit protection
• Certified to CE, UL, and EN standards for global industrial applications

Additional Specifications:

• Type: AC-DC DIN Rail Power Supply
• Output Current: 2.5A
• Output Voltage: 24V DC
• Output Power: 60W
• Input Votlage: 100–240V AC
