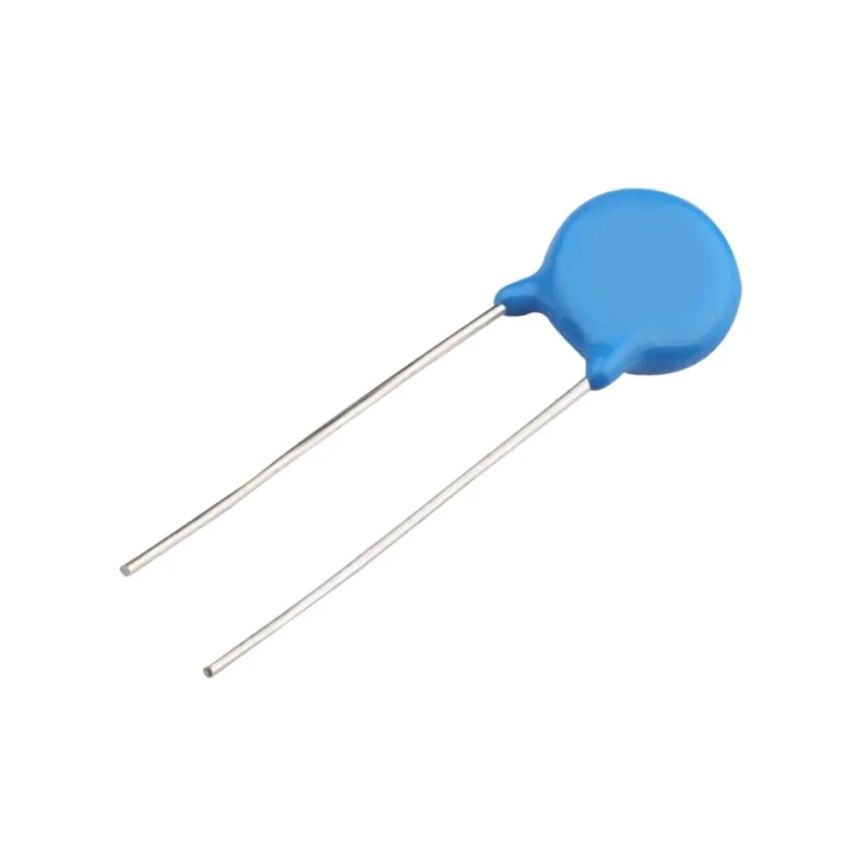

S20K30 Varistor Metal Oxide 30VAC 39VDC 20mm Radial Lead

The S20K30 is a robust Metal Oxide Varistor (MOV) designed to protect electronic circuits against voltage spikes and surges. With a maximum continuous operating voltage of 30V AC / 39V DC, it is ideal for low-voltage applications including power supplies, motor control systems, and household electronics.

Key Features:

• 20mm disk size allows high energy absorption capacity
• Offers overvoltage protection at 30V AC and 39V DC
• Fast response time <25 ns for efficient transient suppression
• Clamping voltage up to 77V for line protection
• RoHS compliant and UL recognized for safety assurance
• Coated with flame-retardant epoxy for environmental protection

Additional Specifications:

• Capacitance: 30,000 pF
• Voltage Rating: 30V AC / 39V DC
