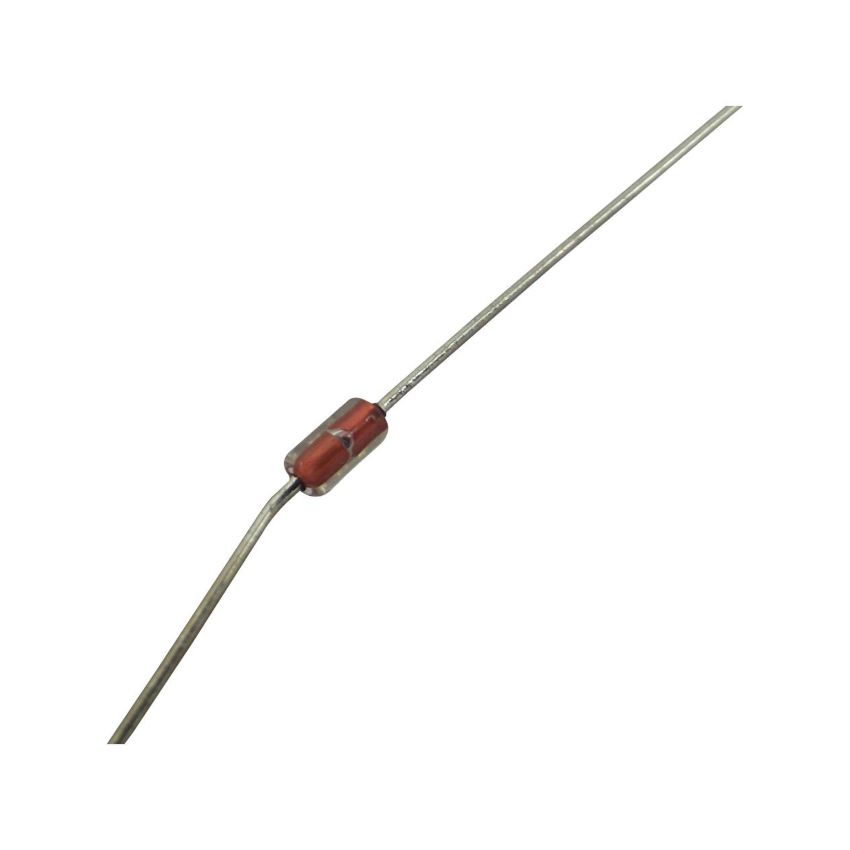

NTCLG100E2203JB Thermistor NTC 20K Ohm 3997K DO35 Glass Encapsulated High Accuracy

The NTCLG100E2203JB is a high-performance NTC (Negative Temperature Coefficient) thermistor designed for precision temperature sensing and compensation applications. With a nominal resistance of 20kΩ at 25°C and a B value of 3997K (25/85), it offers exceptional accuracy in temperature measurement. The thermistor is glass encapsulated in a DO-35 axial package, providing superior moisture resistance, enhanced durability, and thermal stability, making it suitable for harsh environments, including automotive, HVAC, and industrial controls.

Key Features:

• Glass encapsulated construction ensures high stability in harsh environments
• B value of 3997K provides precise temperature sensing over a wide range
• Resistance tolerance ±1% for accurate measurements
• Operating temperature range from -40°C to +150°C
• Axial leaded DO-35 package allows easy through-hole PCB mounting
• Excellent thermal cycling endurance and long-term reliability

Additional Specifications:

• Voltage Rating DC: 32 V
• Voltage Rating AC: 250 V
• Operating Temperature: 40°C to +150°C
• Steady State Current: 2 mA
• Resistance @ 25C: 20 kΩ
