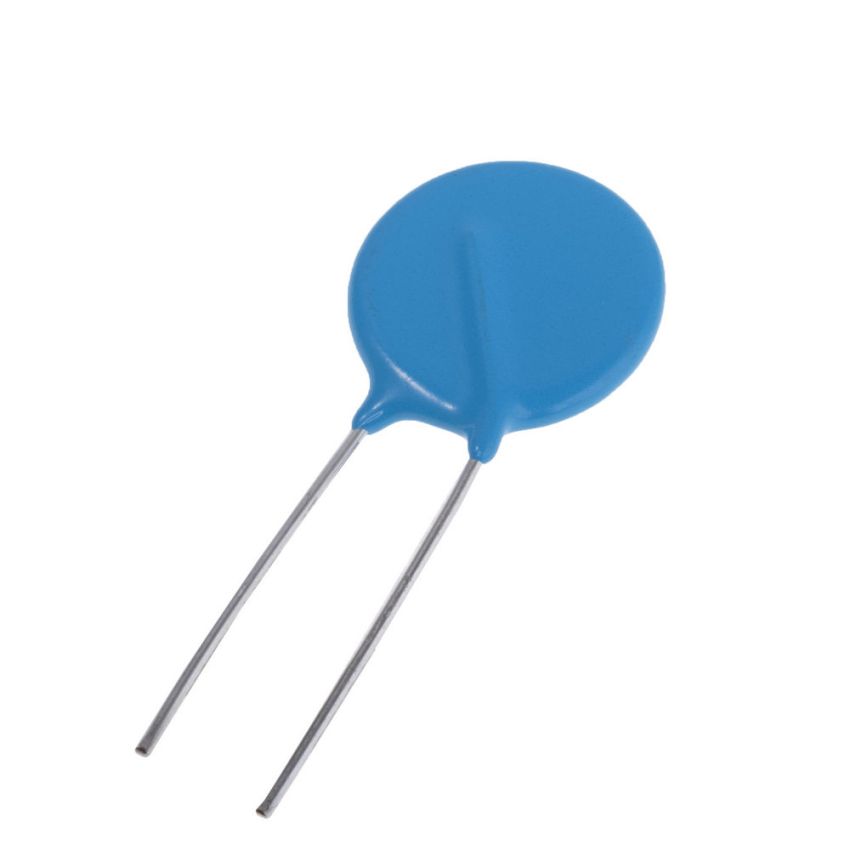

S20K250 Metal Oxide Varistor 250V AC 20mm Radial Through Hole

The S20K250 is a high-quality 20mm radial leaded Metal Oxide Varistor (MOV) specifically designed for over-voltage protection. With an AC voltage rating of 250V, it provides excellent surge suppression in power supplies, home appliances, and industrial equipment. This MOV can handle transient pulses up to 6.5 kA and is built with flame-retardant epoxy coating, ensuring durability and safety in demanding applications.

Key Features:

• High surge current capability up to 6.5 kA
• Fast response time <25 ns
• Clamping Voltage: ~650V
• Maximum Energy: 130J
• Varistor Voltage: 350V (typical)
• Operating Temperature: -40°C to +85°C

Additional Specifications:

• Capacitance: 1100 pF
• Voltage Rating: 250V AC / 320V DC
