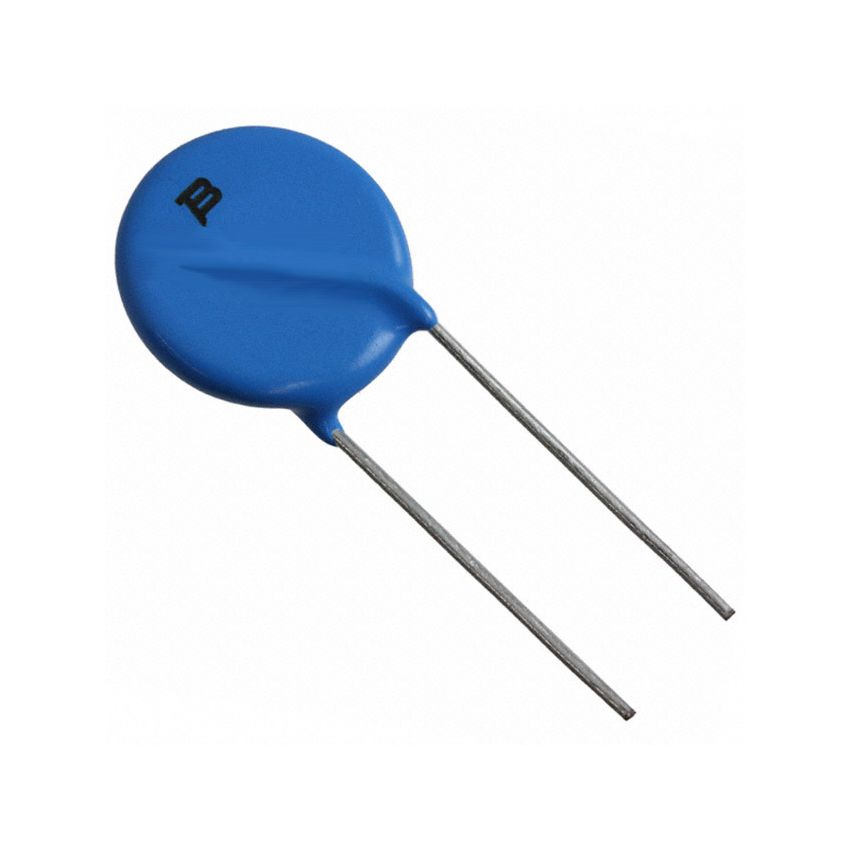

10D471K Metal Oxide Varistor 470V 10mm ±10 Percent Radial Lead 2.5KA Transient Suppressor

The 10D471K is a compact, radial-lead Metal Oxide Varistor (MOV) designed for protecting low- to medium-power circuits from voltage surges. It has a varistor voltage of 470V, allowing it to effectively suppress spikes in AC power lines, particularly where 300VAC nominal voltages are used. The 10mm disc size makes it ideal for space-constrained designs, while still delivering a surge current rating of 2.5KA (8/20µs). It reacts quickly to voltage surges with a response time under 25ns and is commonly used in consumer electronics, power supplies, relays, and control systems.

Key Features:

• 470V Varistor Voltage with ±10% Tolerance ensures precise surge protection
• 10mm Disc Size suitable for compact high-voltage protection circuits
• Max Surge Current of 2.5KA with 8/20µs waveform capability
• Continuous Voltage: 300VAC and 385VDC for line-level defense
• Fast clamping response time <25ns against transient spikes
• Radial Epoxy-Coated Package, Flame Retardant and RoHS Compliant

Additional Specifications:

• Capacitance: 180pF
• Voltage Rating: 300V AC / 385V DC
