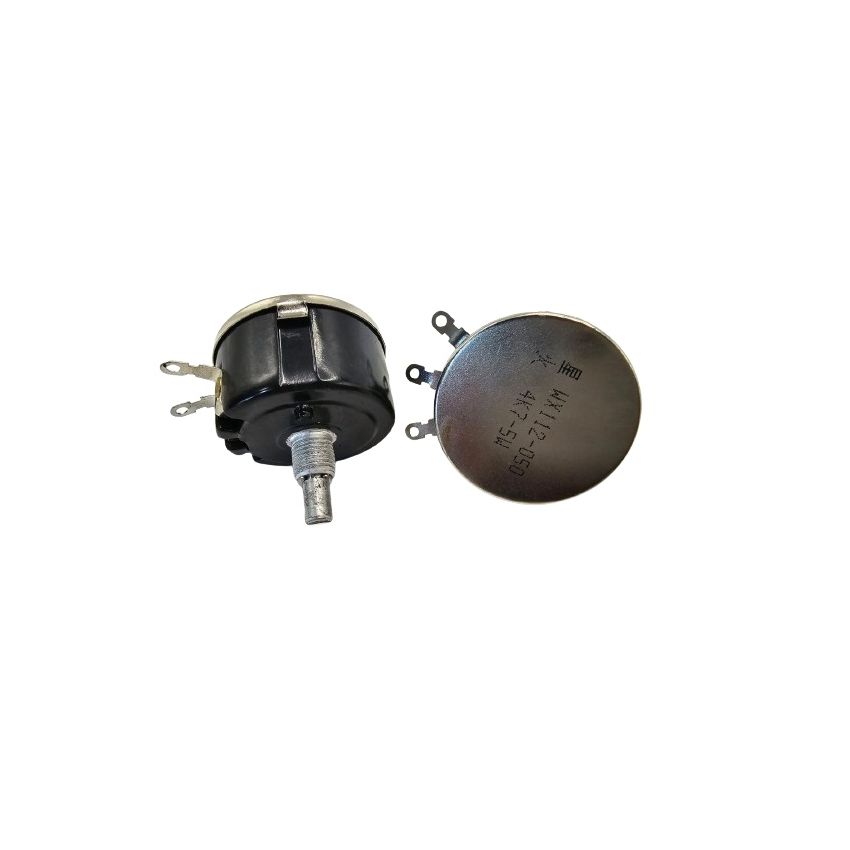

WX112050 Wirewound Potentiometer 4.7K Ohm 2W Panel Mount 1 Turn ±5 Percent

The WX112(050) 4.7K Ohm Potentiometer is a wirewound rotary variable resistor designed for manual adjustment of resistance in electrical and electronic circuits. With a resistance of 4.7K Ohms and a ±5% tolerance, it is ideal for applications like voltage regulation, signal tuning, and current control in analog setups. Its 2W power rating allows it to operate reliably in power-sensitive designs, while the 1-turn control provides easy and accurate adjustments. Housed in a durable metal case and designed for panel mounting, this potentiometer is well-suited for audio equipment, instrumentation, and control panels.

Key Features:

• 4.7K Ohm total resistance value suitable for analog tuning and voltage control
• ±5% resistance tolerance for standard industrial accuracy
• 2W power rating ensures robust performance in moderate power circuits
• Wirewound construction delivers stable resistance under load
• 1-turn operation for smooth adjustment and fine control
• Panel mount design with metal bushing for secure mechanical fixing

Additional Specifications:

• Resistance: 4.7K Ohm
• Tolerance: ±5%
• Shaft Diamter: 6mm
• Power Rating: 2W
• Shaft Length: 20 mm
