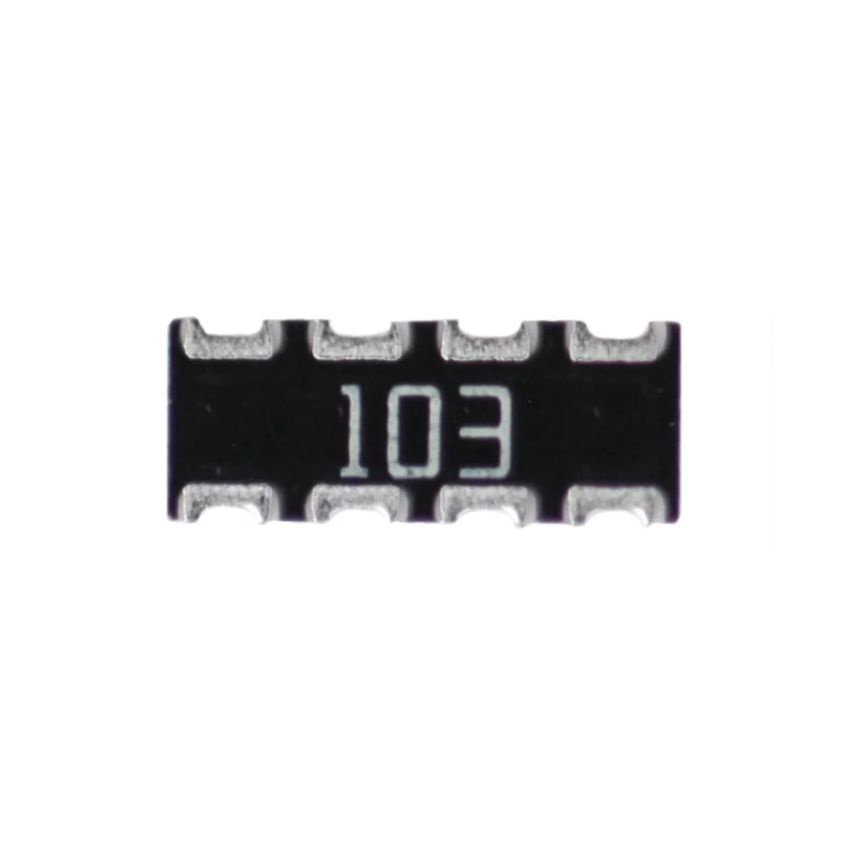

103J Resistor Network 10K Ohm 4 Pin SMD Isolated Array ±5 Percent 1206 Package

The 103J 4-Pin Resistor Array is a compact surface-mount component containing four individual 10K Ohm resistors in a 1206 SMD package. These resistors are isolated (not connected internally), providing great flexibility in circuit design. With a ±5% tolerance, it is suited for general-purpose logic circuits, pull-up/pull-down configurations, signal routing, and input protection. The small footprint saves space and simplifies the BOM by reducing the number of discrete components required.

Key Features:

• 4-resistor isolated array with 10K Ohm resistance per element
• ±5% tolerance offers cost-effective performance for signal and logic circuits
• Compact 1206 SMD package allows high-density PCB mounting
• Suitable for pull-up/down, signal termination, and biasing applications
• Simplifies layout and reduces part count compared to discrete resistors
• Ideal for digital and analog circuit design with uniform resistor values

Additional Specifications:

• Resistance: 10K Ohms
• Tolerance: ±5%
• Power Rating: 62.5mW
• Temperature Coefficient: ±200 ppm/°C
• Package Type: 1206
• Mounting Style: SMD
