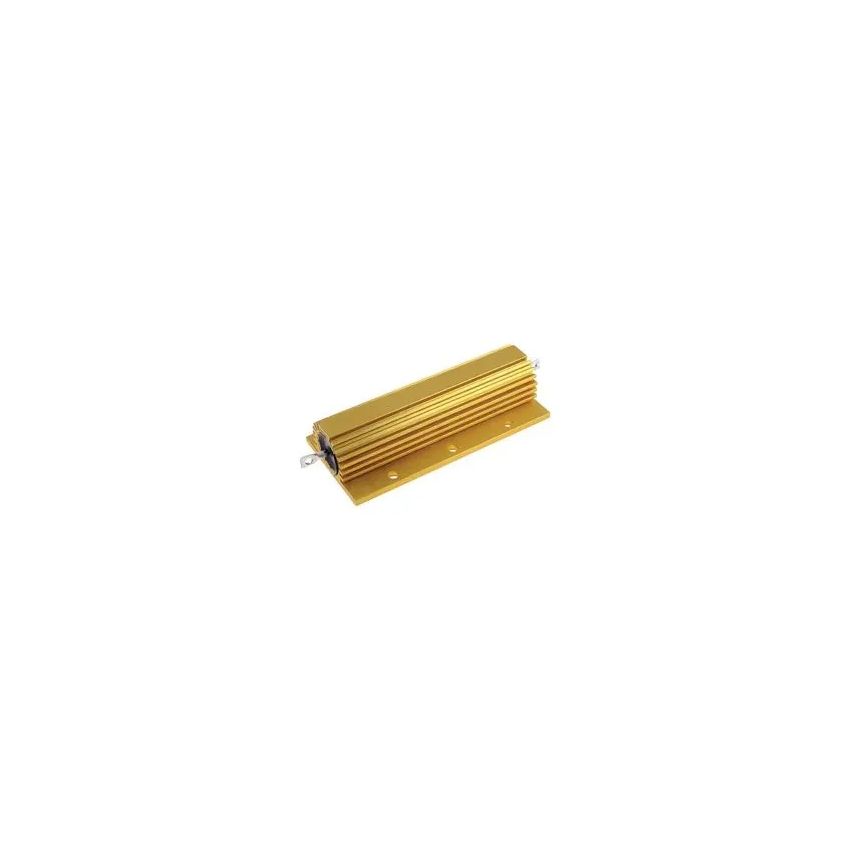

22 Ohm Wirewound Resistor 150W ±5 Percent Aluminum Housed Chassis Mount High Power

The 22 Ohm 150W Wirewound Resistor is a robust high-power resistor designed for use in energy discharge, braking systems, voltage division, and industrial automation. With a resistance of 22Ω, this unit is particularly effective for power-limiting tasks, motor drive damping, and heater simulation. The wirewound construction provides outstanding electrical and thermal stability, while the anodized aluminum case acts as an integrated heatsink, significantly enhancing cooling performance. The chassis-mountable base with pre-drilled screw holes allows for easy mechanical installation and ensures proper heat sinking during operation.

Key Features:

• 22 Ohm resistance ideal for power limiting, discharge, and industrial control circuits
• 150W power rating ensures reliable performance under continuous high load
• ±5% tolerance suitable for general-purpose power applications
• Wirewound element offers precision, thermal stability, and long service life
• Aluminum ribbed housing provides excellent heat dissipation
• Chassis mount with screw holes and solder/screw terminals for secure installation

Additional Specifications:

• Resistance: 22 Ohms
• Tolerance: ±5%
• Power Rating: 150W
• Temperature Coefficient: ±100 ppm/°C
• Package Type: Wirewound
• Mounting Style: Chassis Mount
