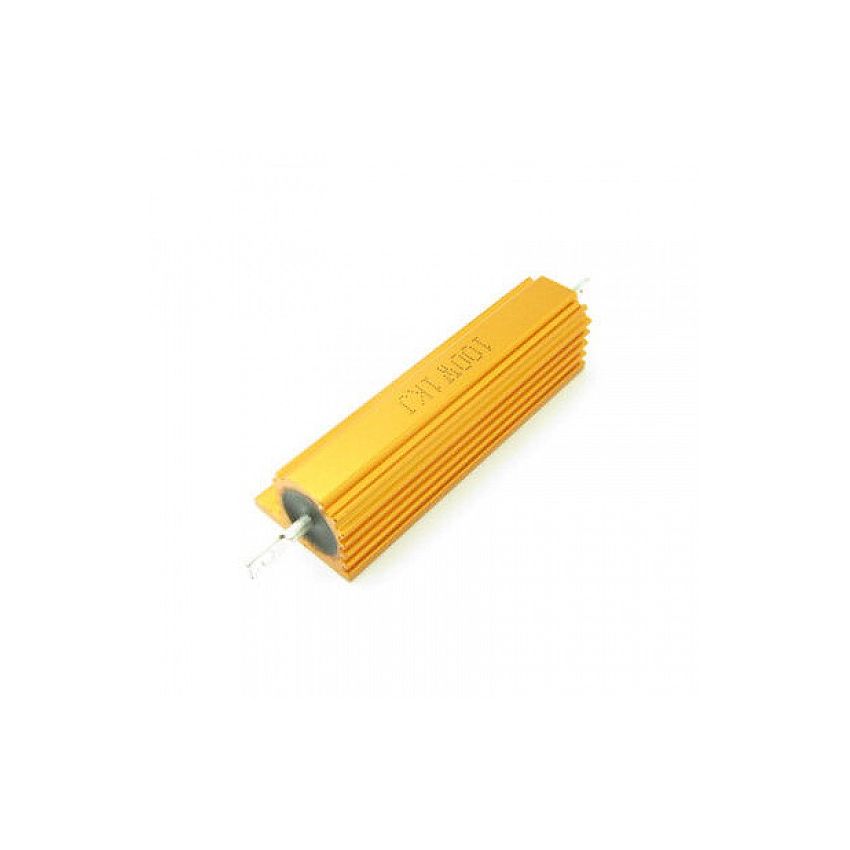

1K Ohm Wirewound Resistor 100W ±5 Percent Round Aluminum Housed Chassis Mount High Power

The 1K Ohm 100W Wirewound Resistor is a high-power industrial-grade resistor designed for dissipation and current limiting in demanding environments. This resistor features a wirewound element for precision and thermal stability, and is enclosed in a round aluminum shell with fins for enhanced heat transfer. Ideal for use in motor braking, dummy loads, power supply discharge, and snubber circuits, this resistor is chassis-mountable, allowing for secure mechanical and thermal installation using its side screw holes. The high resistance of 1K Ohms allows it to operate in higher-voltage control or sensing applications.

Key Features:

• 1K Ohm resistance ideal for high-voltage and power-dissipating applications
• 100W power rating suitable for energy discharge, braking, or load simulation
• ±5% tolerance for stable, reliable operation in power circuits
• Wirewound element ensures low inductance and long life
• Round finned aluminum housing enables efficient heat dissipation
• Chassis mount type with screw holes for easy thermal/mechanical integration

Additional Specifications:

• Resistance: 1K Ohms
• Tolerance: ±5%
• Power Rating: 100W
• Temperature Coefficient: ±100 ppm/°C
• Package Type: Wirewound
• Mounting Style: Chassis Mount
