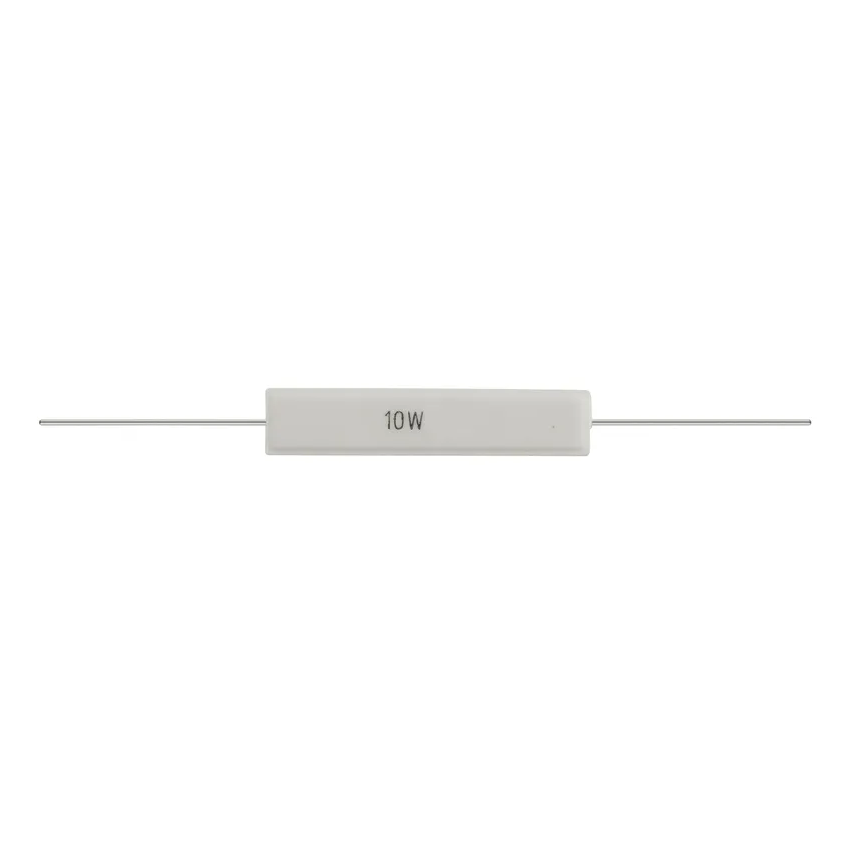

470 Ohm Wirewound Resistor 10W ±5 Percent Ceramic Case Axial Through-Hole

The 470 Ohm 10W Wirewound Resistor is a high-power, through-hole resistor designed for use in demanding electrical and electronic circuits. It features a ceramic encased housing for efficient heat dissipation and flame resistance. The wirewound element offers reliable, low-noise performance and exceptional stability under load, making it ideal for applications such as power supplies, motor control, voltage dropping, and dummy loads. Its axial lead design supports easy integration into traditional PCB layouts and terminal-based designs, ensuring mechanical strength and thermal management in high-current scenarios.

Key Features:

• 470 Ohm resistance ideal for high-power dissipation and current limiting
• 10 Watt power rating for demanding power supply and load applications
• ±5% tolerance suitable for general-purpose and industrial circuits
• Wirewound construction ensures low noise and excellent thermal stability
• Ceramic rectangular housing enhances heat dissipation and safety
• Axial lead through-hole design allows strong mechanical mounting

Additional Specifications:

• Resistance: 470 Ohms
• Tolerance: ±5%
• Power Rating: 10W
• Temperature Coefficient: ±300 ppm/°C
• Package Type: Wirewound
• Mounting Style: Through-Hole
