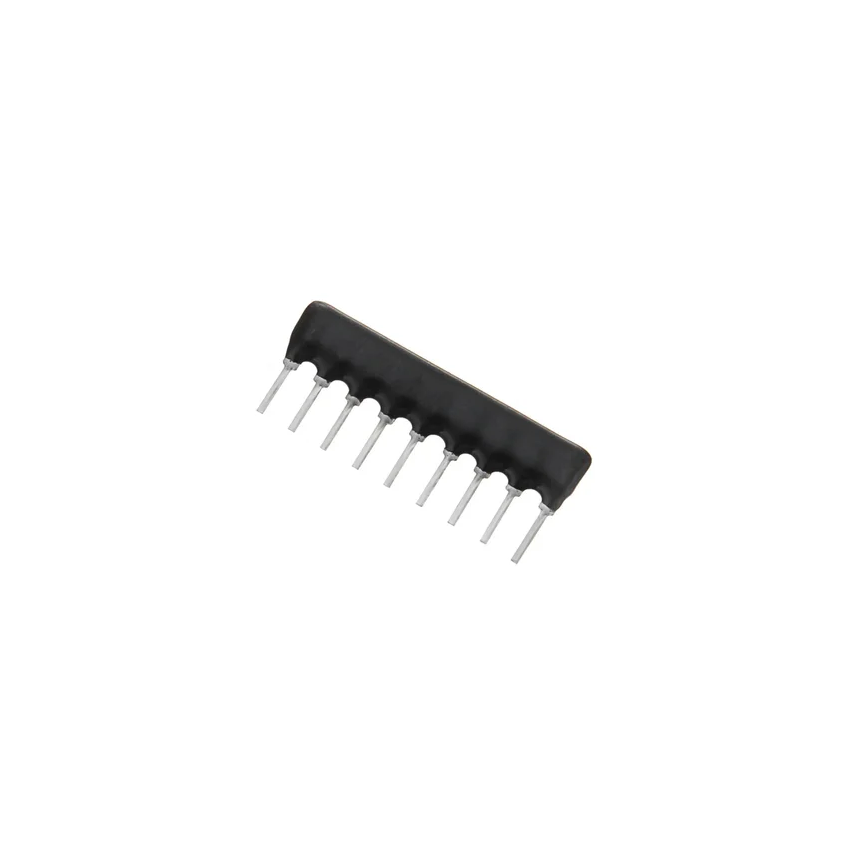

103J Resistor Array 10K Ohm 9-Pin SIP Network ±5 Percent Isolated Through-Hole

The 103J Resistor Array - 9P is a compact and convenient resistor network containing eight 10K Ohm resistors, each isolated and housed in a 9-pin single in-line package (SIP). With a ±5% tolerance and through-hole design, this array is perfect for space-saving resistor applications such as pull-up/down networks, input protection, or termination in digital circuits. Each pin corresponds to an individual resistor, allowing for clean layout and consistent performance. The epoxy-coated body offers protection and reliability in both hobbyist and commercial-grade electronics.

Key Features:

• 10K Ohm resistance per element with ±5% tolerance for standard signal lines
• 9-pin Single In-line Package (SIP) for compact and easy PCB mounting
• Contains 8 isolated resistors (not bussed) in a single package
• Through-hole mounting ensures secure placement and soldering
• Ideal for pull-up/pull-down, termination, or general-purpose resistor networks
• Epoxy-encapsulated body for protection against moisture and contaminants

Additional Specifications:

• Resistance: 10K Ohm
• Tolerance: ±5%
• Power Rating: 0.125W
• Temperature Coefficient: ±200 ppm/°C
• Package Type: SIP-9
• Mounting Style: Through-Hole
