PE30 Potentiometer 470K Ohm 1 Turn Cermet Linear 3W Bushing Mount ±10%

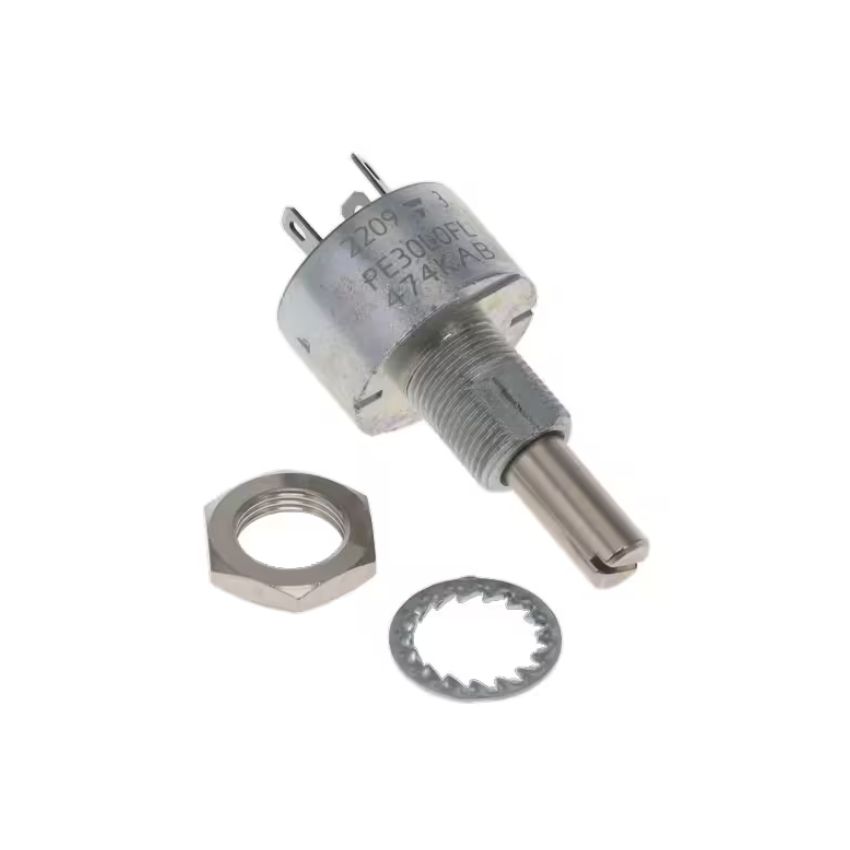

The Vishay PE30 Series 470K Ohm Potentiometer is a precision-engineered, panel-mount variable resistor designed for professional and industrial electronic applications. It features a cermet element, offering excellent long-term stability, minimal temperature drift, and high durability. With a 470KΩ resistance and linear taper, this potentiometer is well-suited for applications requiring high-impedance adjustment, such as signal processing, instrumentation, and control equipment. It features a strong metal bushing, a 6.35mm diameter shaft with screwdriver slot, and includes locking hardware for secure mounting. Rated at 3W, it handles power-intensive use without compromising precision.

Key Features:

• 470K Ohm resistance ideal for high-impedance signal and control applications
• 1-turn rotary operation for quick analog adjustment
• Cermet element ensures stability, high-temperature resistance, and durability
• ±10% resistance tolerance suitable for industrial-grade circuits
• 3W power rating allows use in demanding environments
• Bushing mount design with rugged shaft, washer, and nut for secure panel installation

Additional Specifications:

• Resistance: 470K Ohms
• Tolerance: ±10%
• Shaft Diamter: 6.35mm
• Power Rating: 3W
• Shaft Length: 22mm
