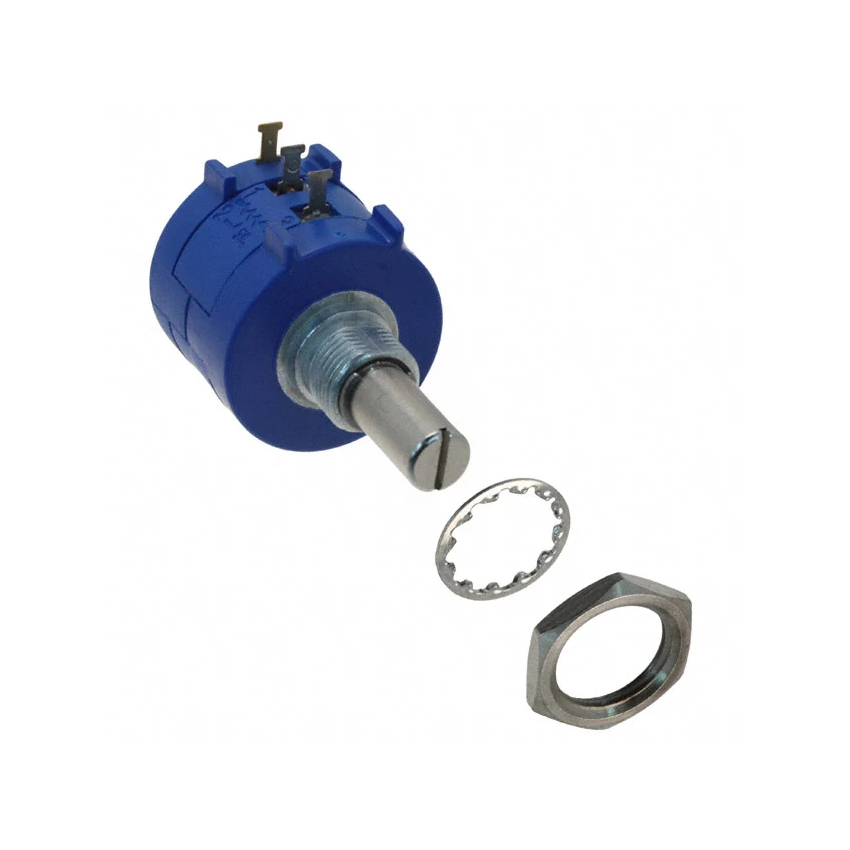

3590S-2-103L Precision Potentiometer 10K Ohm 10 Turn Wirewound Bushing Mount 2W

The 3590S-2-103L is a high-precision 10-turn potentiometer with a resistance of 10,000 Ohms (10KΩ), designed for applications demanding accurate and repeatable adjustment. Built with a rugged wirewound element and sealed construction, it ensures long operational life and resistance to environmental factors. Ideal for calibration systems, control panels, laboratory instruments, and analog signal processing, this potentiometer features a linear taper and supports up to 1 million rotational cycles. Its panel mount design includes a threaded bushing and comes with hardware for stable installation. The 6.35mm diameter and 22mm long shaft are compatible with standard control knobs.

Key Features:

• 10K Ohm resistance ideal for signal tuning and analog control applications
• 10-turn adjustment design for ultra-precise resistance settings
• Durable wirewound element offers excellent stability and long service life
• ±5% resistance tolerance for accurate and consistent output
• Rated for 2W power at 70°C, suitable for industrial and test environments
• Bushing mount with 6.35mm diameter, 22mm long shaft for secure panel integration

Additional Specifications:

• Resistance: 10K Ohms
• Tolerance: ±5%
• Shaft Diamter: 6.35mm
• Power Rating: 2 Watts
• Shaft Length: 22mm
