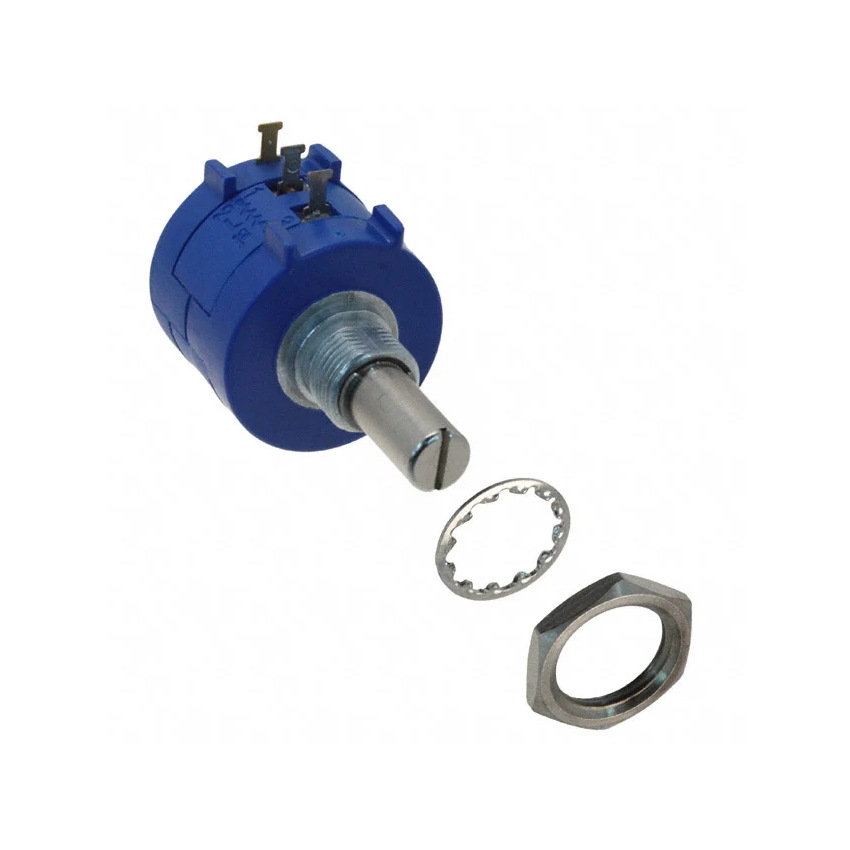

3590S-2-102L Precision Potentiometer 1K Ohm 10 Turn Wirewound Bushing Mount 2W

The 3590S-2-102L is a premium 10-turn precision potentiometer with a resistance value of 1,000 Ohms (1KΩ). It features a highly reliable wirewound element, making it ideal for applications requiring precise analog voltage control such as test equipment, calibration tools, and industrial automation systems. Its linear taper ensures consistent resistance changes, while the rugged sealed construction allows for up to 1,000,000 adjustment cycles. The potentiometer includes a 6.35mm diameter shaft with 22mm length and is mounted via a threaded bushing with included hardware for panel integration. Designed to deliver accuracy and longevity in demanding environments.

Key Features:

• 1K Ohm resistance for accurate low-range analog adjustments
• 10-turn rotary design enables ultra-fine resolution and precision tuning
• Wirewound element ensures stable, high-reliability performance
• ±5% tolerance delivers consistent resistance for calibrated circuits
• 2W power rating at 70°C for robust industrial or lab usage
• Bushing mount with 6.35mm shaft and 22mm shaft length for secure panel installation

Additional Specifications:

• Resistance: 1K Ohms
• Tolerance: ±5%
• Shaft Diamter: 6.35mm
• Power Rating: 2 Watts
• Shaft Length: 22mm
