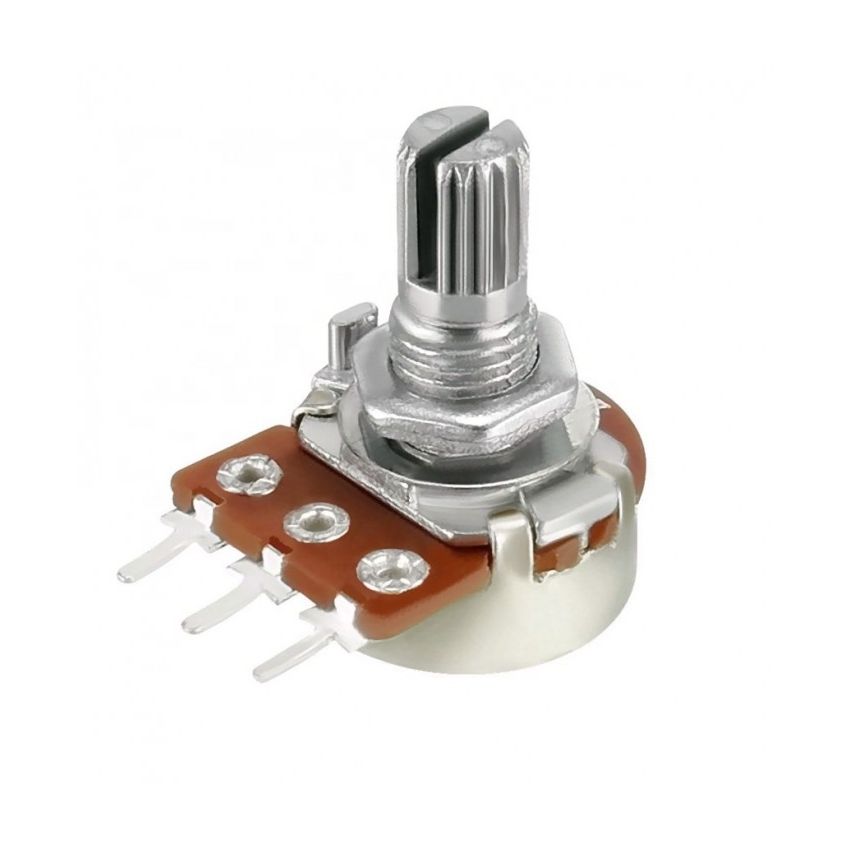

NPMB 1K Ohm Potentiometer Rotary 3-Pin Panel Mount Knurled Shaft 6mm

The NPMB 1K Ohm Potentiometer is a compact, single-turn rotary variable resistor designed for fine-tuning signals and voltage levels in analog circuits. With a resistance of 1,000 Ohms, it is well-suited for applications requiring lower impedance adjustments, such as audio preamps, LED dimming, and control interfaces. The 6mm knurled shaft is compatible with a wide range of control knobs, and the included nut and washer ensure secure panel mounting. Its 3-pin output makes it easy to implement as a voltage divider or variable resistor in many electronic circuits.

Key Features:

• 1K Ohm resistance for low-range analog control and voltage tuning
• 3-pin standard layout supports voltage divider and adjustable signal circuits
• Single-turn rotary action enables smooth resistance adjustment
• Knurled 6mm shaft compatible with press-fit control knobs
• Panel-mount design with nut and washer for secure installation
• Ideal for audio level control, sensor calibration, and DIY electronics

Additional Specifications:

• Resistance: 1K Ohms
• Tolerance: ±20%
• Shaft Diamter: 6mm
• Power Rating: 0.25W
• Shaft Length: 15mm
