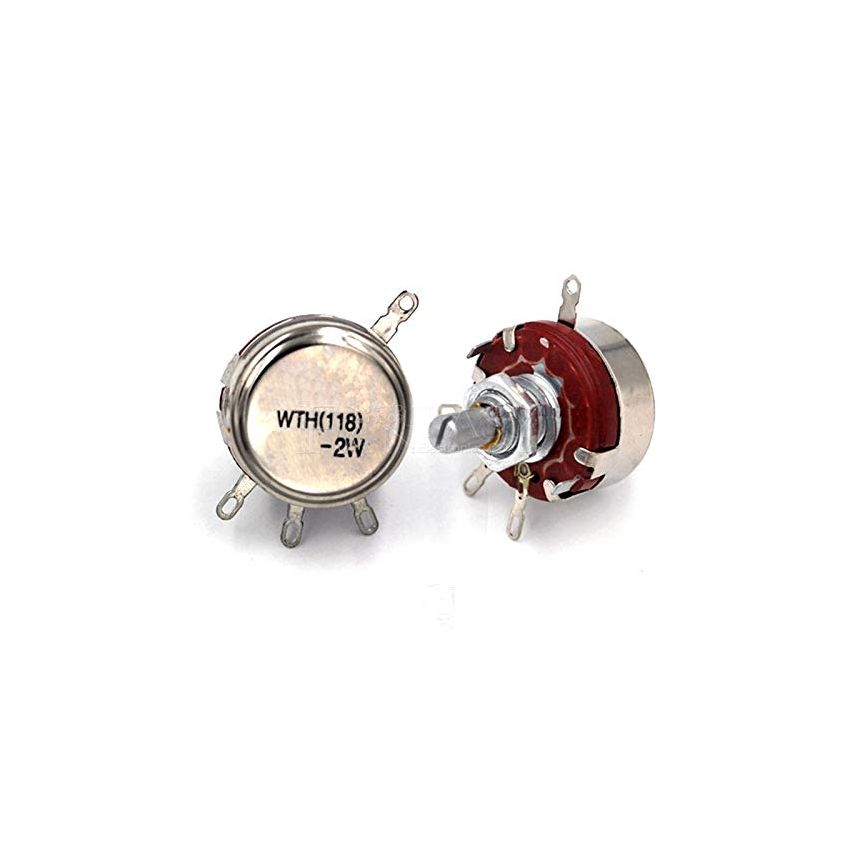

WTH118 10K Ohm Potentiometer Wirewound 2W Rotary Panel Mount with Solder Lugs

The WTH118 10K 2W Potentiometer is a high-reliability wirewound rotary potentiometer designed for use in analog voltage control, signal tuning, and DIY electronics. With a resistance value of 10K Ohms and a robust 2-watt power rating, it is capable of handling higher loads than typical carbon film potentiometers. The single-turn rotary adjustment allows for smooth and responsive control. This potentiometer features a standard bushing mount with included hardware (nut and washer), and solder lug terminals for easy integration into your circuit or control panel. Ideal for audio controls, power supplies, and various electronic projects.

Key Features:

• 10,000 Ohms (10KΩ) resistance for general analog control and tuning
• Wirewound construction provides durability and precise adjustment
• 2W power rating for moderate load handling in various applications
• Rotary single-turn design with smooth, linear adjustment
• Standard panel mount with nut and washer for secure installation
• Solder lug terminals for easy and reliable connections

Additional Specifications:

• Resistance: 10K Ohms
• Tolerance: ±10%
• Shaft Diamter: 6mm
• Power Rating: 2 Watts
• Shaft Length: 20mm
