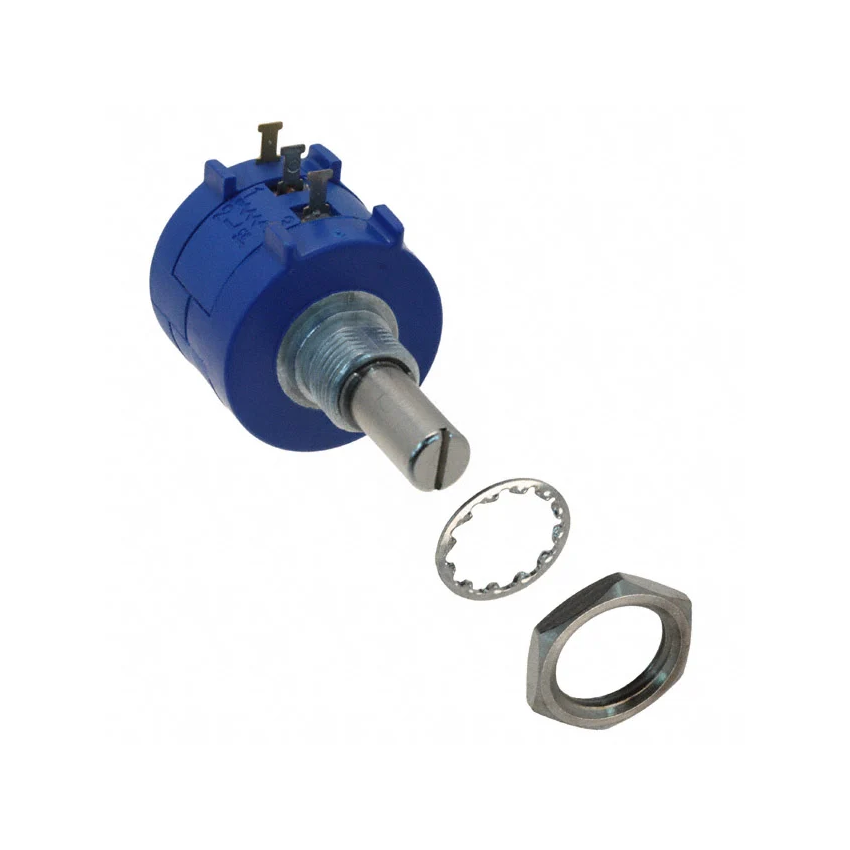

3590S-2-502L Precision Potentiometer 5K Ohm 10 Turn Wirewound Bushing Mount 2W

The 3590S-2-502L is a premium-grade 10-turn precision potentiometer with a resistance of 5K Ohms. It features a rugged wirewound element inside a sealed housing for high performance and reliability in demanding applications. Ideal for use in control systems, test equipment, and calibration circuits, the potentiometer offers excellent linearity, long mechanical life, and minimal drift. The bushing mount design ensures a secure panel fit, and it includes a 6.35mm diameter shaft (22mm length), making it compatible with most control knobs. The unit supports up to 1,000,000 cycles, making it a top choice for industrial and lab use.

Key Features:

• Resistance value: 5,000 Ohms (5KΩ) for precise analog voltage control
• 10-turn design offers ultra-fine resolution across full rotation
• Wirewound element provides stability, durability, and high accuracy
• ±5% resistance tolerance ensures consistent performance in calibrated circuits
• 2W power rating at 70°C suitable for industrial-grade applications
• Panel-mountable with threaded bushing, 6.35mm shaft, and 22mm shaft length

Additional Specifications:

• Resistance: 5K Ohms
• Tolerance: ±5%
• Shaft Diamter: 6.35mm
• Power Rating: 2 Watts
• Shaft Length: 22mm
