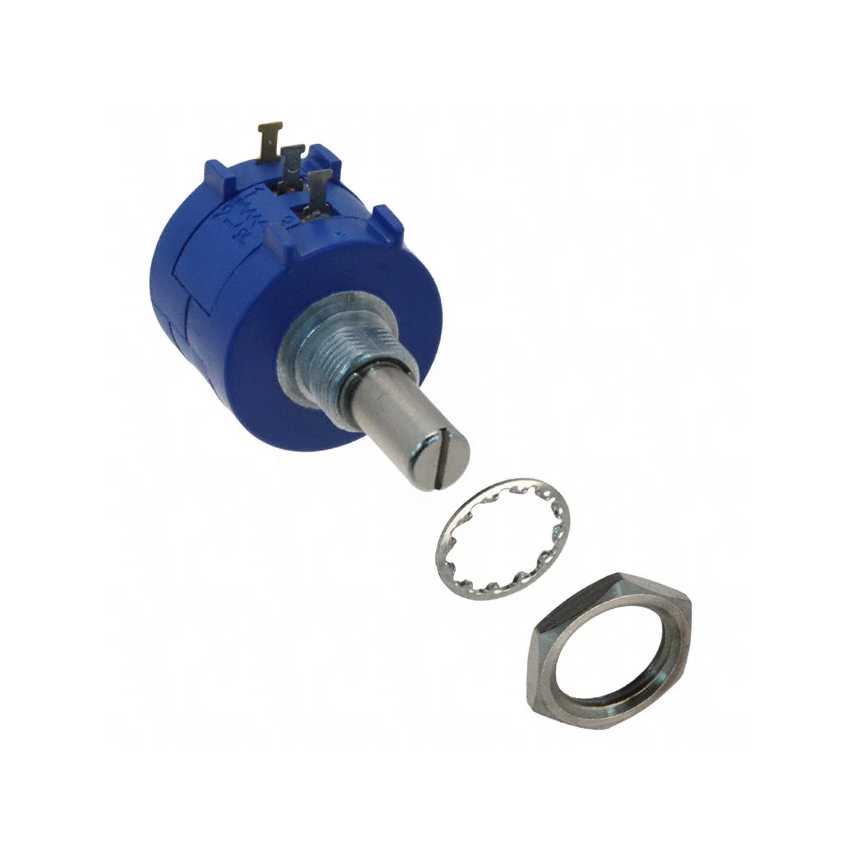

3590S-2-501 Precision Potentiometer 500 Ohm 10 Turn Wirewound Bushing Mount 2W

The 3590S-2-501 is a high-precision 500 Ohm multi-turn potentiometer, built with a durable wirewound element and a sealed body. It’s designed for applications requiring fine, repeatable control over a wide range of adjustment, making it suitable for calibration equipment, industrial controllers, and lab instruments. Featuring a 10-turn mechanism, 6.35mm diameter shaft, and 22mm shaft length, this potentiometer allows detailed resistance adjustments with minimal drift over time. The bushing mount allows secure panel installation using the included washer and nut. Its 2-watt power rating makes it robust enough for consistent use in professional and industrial environments.

Key Features:

• Resistance: 500 Ohms, ideal for low-impedance analog control circuits
• 10-turn wirewound design for precise multi-turn resistance adjustment
• ±5% resistance tolerance ensures accurate and repeatable output
• Rugged panel-mount bushing style with included mounting hardware
• 2W power rating at 70°C, suitable for demanding environments
• Long mechanical life—up to 1,000,000 cycles for industrial reliability

Additional Specifications:

• Resistance: 500 Ohms
• Tolerance: ±5%
• Shaft Diamter: 6.35mm
• Power Rating: 2 Watts
• Shaft Length: 22mm
