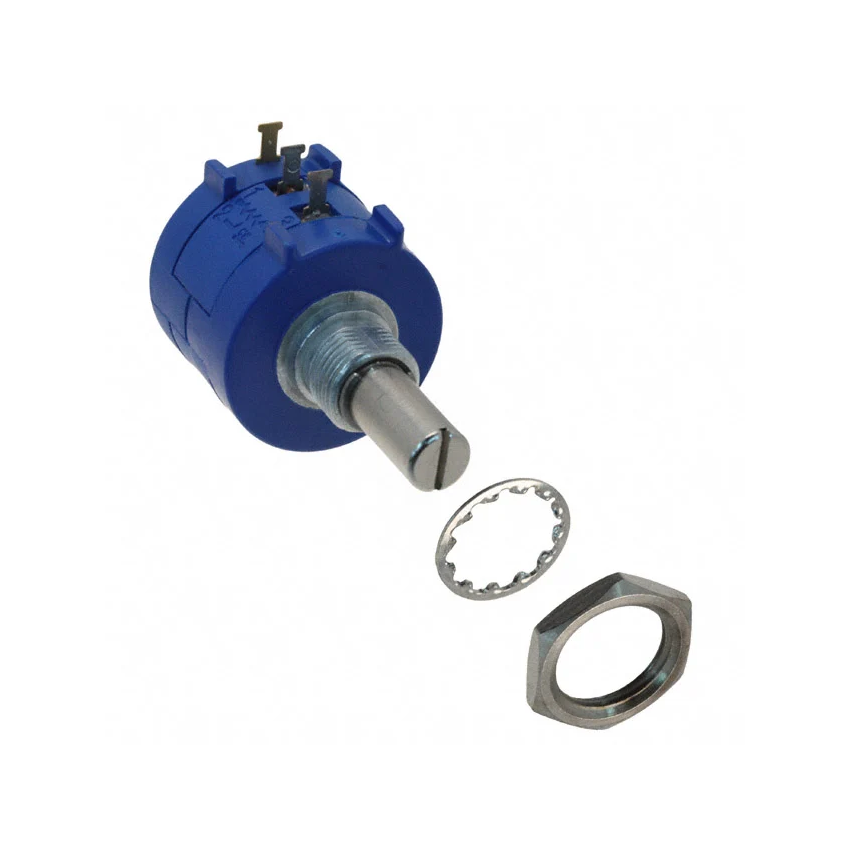

3590S-2-102L Precision Potentiometer 1K Ohm 10 Turn Wirewound Bushing Mount 2W

The 3590S-2-102L is a 10-turn, wirewound precision potentiometer rated at 1K Ohms, designed for applications requiring fine adjustment and high durability. With its linear taper and multi-turn mechanism, it provides smooth and accurate resistance control, ideal for test equipment, power supplies, calibration devices, and industrial control systems. The potentiometer features a rugged sealed housing, a 6.35mm diameter shaft with 22mm length, and a bushing mount configuration for easy and secure panel installation. With a 2-watt power rating and a mechanical life of up to 1,000,000 cycles, it delivers consistent, long-lasting performance in critical applications.

Key Features:

• 1KΩ (1,000 Ohms) resistance for accurate analog control applications
• 10-turn design provides ultra-fine resolution and tuning
• Durable wirewound element ensures stability and long lifespan
• ±5% resistance tolerance offers reliable and repeatable output
• 2W power rating at 70°C for use in demanding environments
• Bushing mount with 6.35mm shaft and 22mm length for panel integration

Additional Specifications:

• Resistance: 1K Ohms
• Tolerance: ±5%
• Shaft Diamter: 6.35mm
• Power Rating: 2 Watts
• Shaft Length: 22mm
