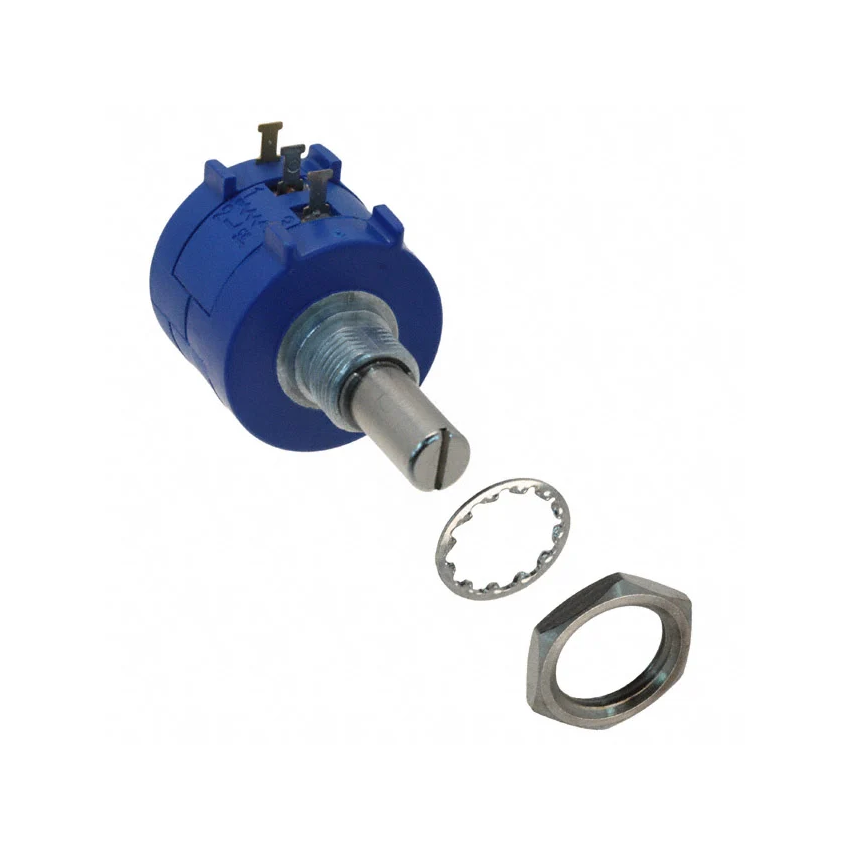

3590S-2-104L Precision Potentiometer 100K Ohm 10 Turn Wirewound Bushing Mount 2W

The 3590S-2-104L is a high-precision 100K Ohm multi-turn potentiometer featuring a 10-turn wirewound element and panel-mountable design. Built for demanding analog control tasks, it delivers outstanding reliability and fine adjustment over a long operating life. Ideal for lab equipment, industrial control systems, and calibration circuits, the potentiometer includes a 6.35mm diameter, 22mm long shaft, complete with a locking nut and washer for easy panel mounting. The sealed design protects internal components from dust and contaminants, ensuring consistent performance over up to one million adjustment cycles.

Key Features:

• Resistance: 100,000 Ohms (100KΩ) for high-resistance applications
• 10-turn mechanism provides fine resolution and accuracy
• Wirewound element ensures long life and high reliability
• ±5% resistance tolerance for precision analog control
• 2W power rating at 70°C enables use in robust industrial setups
• Shaft and bushing mount configuration for secure panel installation

Additional Specifications:

• Resistance: 100K Ohms
• Tolerance: ±5%
• Shaft Diamter: 6.35mm
• Power Rating: 2 Watts
• Shaft Length: 22mm
